Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Resolution: | 32 X 32 Dots |
|---|---|---|---|
| Drive IC: | MBI Or JXI | Led Type: | SMD2727 |
| Led Chip: | Kinglight | Brightness: | 6500cd/sqm |
| Power: | DC 5V | Interface: | HUB75 |
| Weight: | 0.35KG/pcs | ||
| High Light: | Indoor LED Display Module,full color LED Display Module |
||
1/8 Scan PH5mm SMD Led Display Module IP65 Protection Grade 32 X 32 Dots
Quick Detail:
1, Rosolution: 40000dots/sqm
2, Color: 1R1G1B
3, Size: 160mm x 160mm
4, Led Type: SMD2727
5, Current: 5.5A
6, Consumption: 27W/pcs
Description
1. Unique die-cast aluminum cabinet structure, stable, light, and durable;
2. Light, slim and dense, provide a better platform for the shows;
3. Precisely showing, quick responding, and flexible located installation, well performing in any site;
4. High gray handling technology, garanteed the best image quality;
5. High refresh rate as over 1500Hz.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,
Solder Paste Printing Machine,Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)
Equipement.
Applications
Supermarkets, school, shopping malls , hospitals, airport , metro stations, roadside, high way, railway station, bus station, park etc.
Specification
|
Pixel Pitch |
5mm |
|
Pixel Density |
40000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2727 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/8 Scan, Constant Current |
| Led Chip | Kinglight/ Epistar/Nationstar |
| Drive IC | MBI or JXI |
| Power Supply | G-energy, Chuanglian, Meanwell |
|
Module Weight |
0.35KG |
|
Module Thickness |
2.8CM |
|
Interface |
HUB75 |
|
Brightness |
Over 6500cd/sqm |
|
Best Viewing Distance |
5m-100m |
|
Viewing Angle |
H: 160°; V:160° |
|
Refresh Rate |
1800HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1100W/sqm |
|
Ave. Power Consumption |
500W/sqm |
|
Storage Temperature |
-35℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
LINSN, NOVA, XIXUN, HD |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7 ,Win8.etc |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

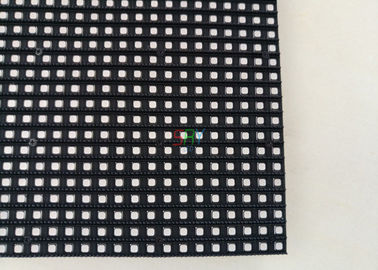

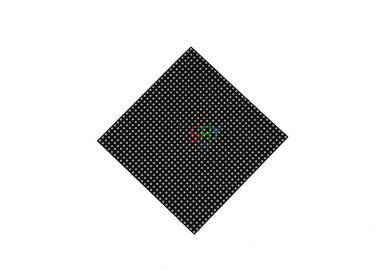

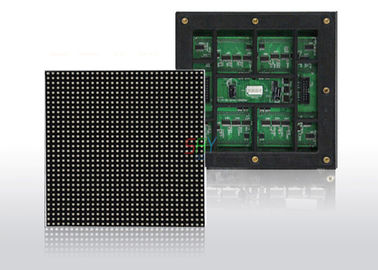

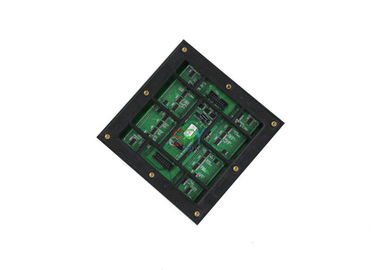

Product Images
