Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Led Type: | SMD2727 |
|---|---|---|---|
| Material: | Die Casting Aluminum | Cabinet Size: | 640mm X 640mm |
| Cabinet Weight: | 12KG/pcs | Waterproof: | IP65 |
| Certification: | 1/8 Scan | Volatage: | 110-220V AC |
| High Light: | rental LED screen,hire LED screen |
||
IP65 Super Clear 3D Video Rental LED Display Panel Ultra Light 5MM
Description
1) SMD 2727 white LED,brightness is high and viewing angle can reach 140 degree horizontally and vertically.
2) It is ultrathin andsuperlight : only 12KG per panel.
3) It can be hung on truss or install on floor ,installation is easy.
6) With fast lock system, it is fast to install and dismantle. It saves labor costs.
7) The gap between adjacent panels can be controlled to minimum.
8) High refresh rate , high gray scale, high resolution, it shows very clear and vivid video / images.
9) It is almost no noise .
10) It is very convenient to carry anywhere because it is carried by cases with wheels .
Features
1. Cabinet size: 640mm x 640mm, 12KG/pcs
2, Refresh rate: 1500Hz/s
3, Brightness: 6500cd/sqm
4, Control system: Linsn / Nova / Colorlight / Xixun
5, Control way: Synchronous / WIFI / USB / 3G
Applications

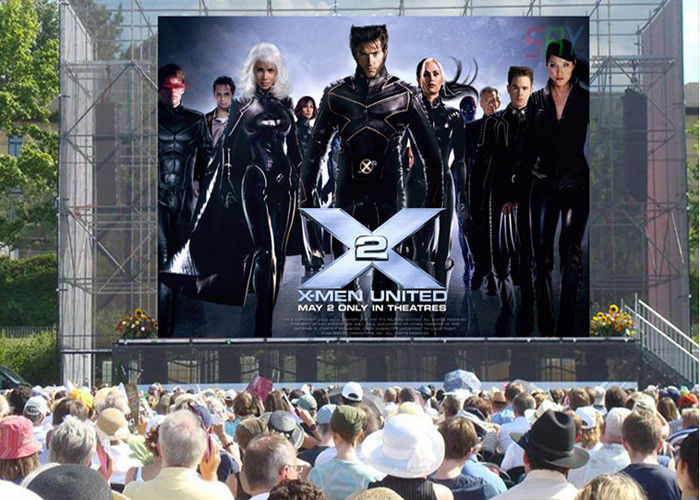

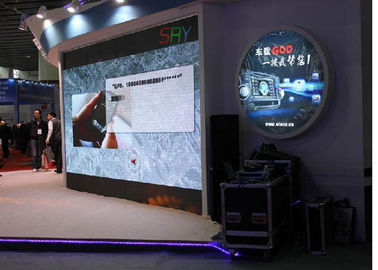

Widely applied outdoor advertising, product conference, concert, stage background, news conference, fashion show etc.
Specifications
| Pixel Information | Pixel Pitch | 5mm |
| Pixel Density | 40000 Pixels/m2 | |
| Pixel Configuration | SMD2727 | |
| LED Wavelength | Red: 615 nm - 635 nm | |
| Green: 520 nm - 535 nm | ||
| Blue: 465 nm - 475 nm | ||
| LED Module | Module Size(mm) | 320 × 160 / 160x160 |
| Module Resolution | 64× 32 / 32 x 32 | |
| Cabinet | Cabinet Size(mm) | 640 × 640 × 80 |
| Cabinet Resolution | 128 × 128 | |
| Total QYT Module Per Cabinet | 2 × 4 | |
| Cabinet Weight | 12kg/pcs | |
| Cabinet Material | Die-casting Aluminum LED Display | |
| Power | Input Voltage | 100-240V AC, 50/60Hz |
| Max Power Consumption | 820 Watt/㎡ | |
| Avg. Power Consumption | 350 Watt/㎡ | |
| Brightness | ≥6500cd/m2 | |
| Brightness Uniformity | Luminance Discrepancy < 5% | |
| Best Viewing Angle | Horizontal:140°,Vertical:140° | |
| Viewing Distance | 5 - 150 meters | |
| Ambient Conditions | Temperature Range | Working:-20deg. to +60deg |
| Operating Humidity | 10%-90%RH | |
| Ingression Protection Grade | IP65 | |
| Processing | Scanning Mode | 1/8 scanning |
| Refresh Frequency | 1500HZ, Adjustable(depends on control system) | |
| Signal Input | DVI, Composite Video for Live Video | |
| Supported Networking | Through LAN/WAN, RS 232/RS485 | |
| Controller | Linsn or Nova or Xixun |

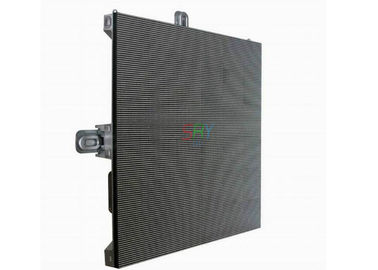

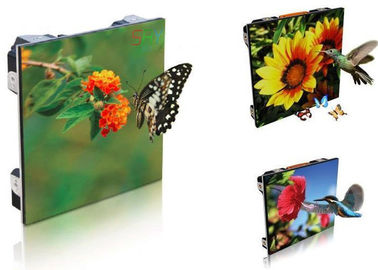

Product Images
