Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.5mm | Module Size: | 160mm X 160mm |
|---|---|---|---|
| Drive IC: | JXI5020 | Cabinet Size: | 640mm X 640mm |
| Drive Method: | 1/16 Scan | Refresh Rate: | 2500Hz |
| Led Chip: | Nationstar | Warranty: | 2 Years |
| High Light: | rental LED screen,hire LED screen |
||
1/16 Scan HD Small Pixel Pitch P2.5 Outdoor Rental Led Display Die Casting Aluminum
Description
P2.5 indoor led display is small pixel pitch led display product, its resolution is very high, up to 160000dots/sqm, from far place, it looks like LED TV.
Since P2.5 led display has high definition, it usually be used for new product conference, super star concert show, government meeting room, fashion show etc.
P2.5 rental led display standard cabinet is 640mm x 640mm, according to customer's different requirements, we can also produce 480mm x 480mm die casting cabinet, cabinet weight is only 7KG/pcs, it is light to carry to any place, and easy to install and disassemble with fast locks.
Feature
1, Seamless connection, perfectly replace LCD ;
2, Special design for the mask to realize higher contrast (5000:1) and larger viewing angle (160°) ;
3, Brightness and refresh rate can be adjustable ;
4, True color reproduction ;
5, High gray scale (16bit) and high refresh rate (2500Hz) ;
6, Lower power consumption with high PFC power supply, the drive current of each LED lamp less than 30mA ;
7, Nova / Linsn / Colorlight / Xixun / Huidu / Lumen control system are available.
Competitive Advantages
1, First-class LED chip Nationstar
2, Clear vivid image quality
3, High refresh IC
4, Energy-saving
5, 24/7 hrs after sale service
6, Lifetime free reparing
Specification
|
Pixel Pitch |
2.5mm |
|
Pixel Density |
160000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
640mm x 640mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
12KG |
| Drive IC | JXI5020 |
| Led Chip | Nationstar |
|
Brightness |
2000 cd/sqm, adjustable by software |
|
Viewing Distance |
2m-50m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2500HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
850W/sqm |
|
Ave. Power Consumption |
350W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications

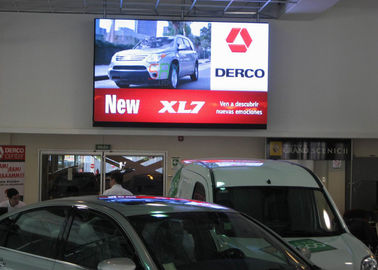

New product conference, the press conference, super star concert show, government meeting room, stage backround, TV station, airport, fashion show , studio etc.
Product Images
