Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.5mm | Module Size: | 160mm X 160mm / 160mm X 80mm |
|---|---|---|---|
| Led Chip: | Nationstar | Drive IC: | MBI5124 |
| Cabinet Size: | 480mm X 480mm | Drive Method: | 1/16 Scan |
| Refresh Rate: | 2800Hz | Control System: | Novastar / Linsn |
| Certificates: | CE, RoHS, LVD | ||
| High Light: | rental LED screen,hire LED screen |
||
TV Rental Led Display Outdoor Advertising Billboard High Refresh Rate 2800hz
Description
P2.5 indoor led display is small pixel pitch led display product, its resolution is very high, up to 160000dots/sqm, from far place, it looks like 4K LED TV and can replace LCD Player.
Since P2.5 led display has high definition, it usually be used for new product conference, super star concert show, government meeting room, fashion show etc.
P2.5 rental led display cabinet can be 480mm x 480mm, and its weight is only 7KG/pcs, it is light to carry to any place, and easy to install and disassemble with fast locks.
Quick Detail
1) Resolution : 160,000 dots
2) Pixel pitch : 2.5 mm ;
3) Module size: 160mm x 160mm / 160mm x 80mm
4) Refresh rate : 2800 Hz / S ;
5) Control system : Novastar / Linsn
6) Cabinet size: 480mm x 480mm ;
7) Cabinet material: Die casting aluminum .
Competitive Advantages
1, First-class LED chip Nationstar
2, Clear vivid image quality, 160000 dots/sqm
3, High refresh IC MBI5124
4, Energy-saving, average 300W/sqm
5, 24/7 hrs after sale service
6, Lifetime free reparing
Specification
|
Pixel Pitch |
2.5mm |
|
Pixel Density |
160000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
160mm x 160mm / 160mm x 80mm |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
480mm x 480mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
7KG |
| Led Chip | Nationstar |
| Drive IC | MBI5124 |
|
Brightness |
2000 cd/sqm, adjustable by software |
|
Viewing Distance |
2m-50m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2800HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
850W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

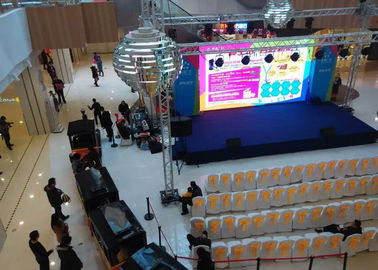

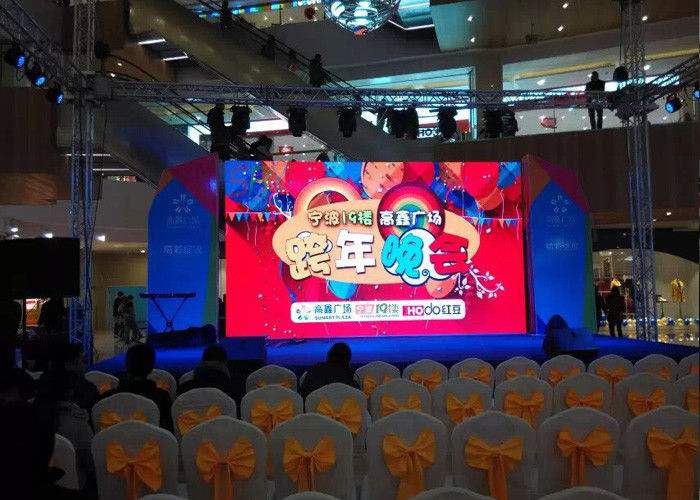

Applications
New product conference, the press conference, super star concert show, government meeting room, stage backround, TV station, airport, fashion show etc.
