| Pixel Pitch: | 2.5mm | Module Size: | 160mm X 160mm |
|---|---|---|---|
| Drive IC: | JXI5020 | Cabinet Size: | 640mm X 640mm |
| Drive Method: | 1/32scan | Refresh Rate: | 2500Hz |
| Certificate: | CE, RoHS | Warranty: | 2 Years |
| High Light: | rental LED screen,hire LED screen |
||
2.5mm SMD2121 High Definition Rent Video Wall Displays For Tv Studio / Meeting Room
Description
1, Fast assembly: It could be installed without complicated tools in hanging and fixed installation.
2, Light weight: With the min-depth 80mm, each cabinet weigh only 12kg.
3, Energy saving: The power consumption for each cabinet is only 120W.
4, Colorful performances: Smart Series P2.5 is equipped with black LED 2121.The high-density, vivid color processing guarantees you high-end broadcasting show.
Feature
1, Seamless connection, perfectly replace LCD;
2, Special design for the mask to realize higher contrast (5000:1) and larger viewing angle (160°);
3, Brightness and refresh rate can be adjustable;
4, True color reproduction;
5, High gray scale (16bit) and high refresh rate (2500Hz);
6, Lower power consumption with high PFC power supply, the drive current of each LED lamp less than 30mA;
7, Supporting synchronous control / 3G / WIFI / USB control system.
Specification
|
Pixel Pitch |
2.5mm |
|
Pixel Density |
160000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/32 Scan |
|
Standard Cabinet Size |
640mm x 640mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
12KG |
| Drive IC | JXI5020 |
|
Brightness |
2000 cd/sqm, adjustable by software |
|
Viewing Distance |
2m-50m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2500HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
850W/sqm |
|
Ave. Power Consumption |
350W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
P2.5 Led display widely used in indoor stadiums, business applications, banking, securities, postal services, terminals, shopping malls, railway stations, postal services, telecommunications, agencies, monitoring, schools, restaurants, hotels, entertainment, businesses and other places of different indoor advertising.

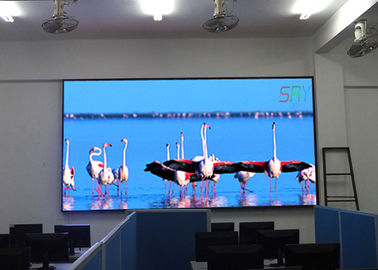

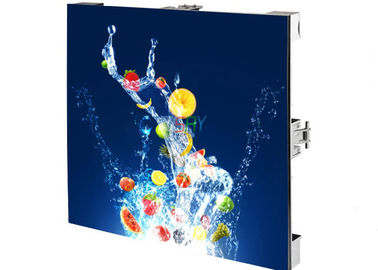

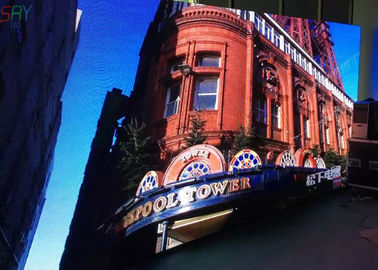

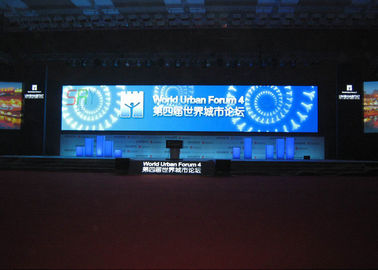

Product Images
