Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91mm | Led Chip: | SMD2121 |
|---|---|---|---|
| Drive IC: | Chipone High Refresh IC | Cabinet Size: | 500mm X 500mm |
| Cabinet Material: | Die Casting Aluminum | Thickness: | 70mm |
Indoor RGB P3.91 Die Cast Aluminum Cabinet For Rental Advertising Video Wall Led Screen
Available Led Pixel: P3.91, P4.81, P5.95, P6.25
Description
1. Cabinets are made of die-casting aluminium,can be spliced with no crack.
2. P2.5/P3/P3.91/P4//P4.81/P5/P6/p6.25 is optional for you.
3. SMD 3-in-1 technology with high brightness makes the display have a ultra-wide view & vivid image.
4. Work normally without air conditioning for low power consumption.
5. Cabinets can adjust angle to realize curved led screen if necessary.
Features
1, Seamless connection.
2, Quickly installation and light weight.
3, Brightness and chromaticity calibration.
4, Mixed use of cabinets from different batches.
5, Special design for the mask to realize higher contrast and larger viewing angle.
Specification
|
Pixel Pitch |
3.91mm |
|
Pixel Density |
65536dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
250mm x 250mm |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/16 Scan |
| Led Color | Black |
|
Standard Cabinet Size |
500mm x 500mm |
|
Cabinet Weight |
7KG |
|
Brightness |
≥1300 cd/sqm, adjustable by software |
|
Viewing Distance |
4m-40m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
1500HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
Applications
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, stages |

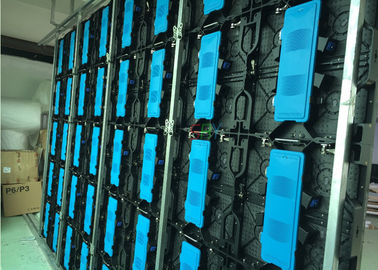

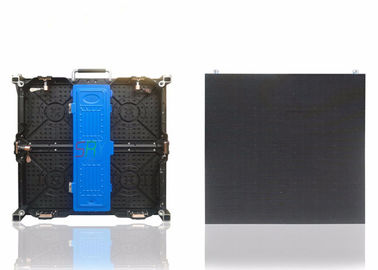

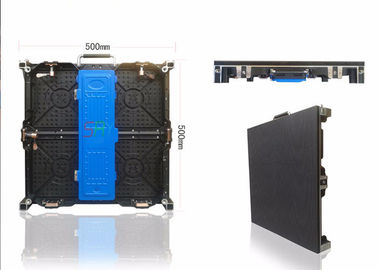

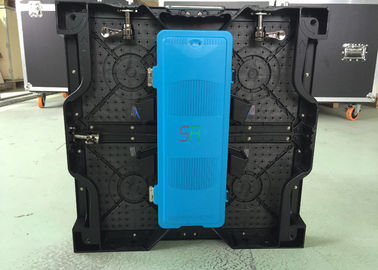

Product Images
