Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Led Type: | SMD2121 |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Cabinet Weight: | 8KG/pcs |
| Environment: | Indoor | Chip Color: | Full Color |
| Viewing Distance: | 3-30m | Volatage: | DC 5V, AC 110-220V |
| High Light: | rental LED screen,hire LED screen |
||
Creative Club DJ 2121 Smd Led Board Light Weight Seamless LED Advertising Player
Description

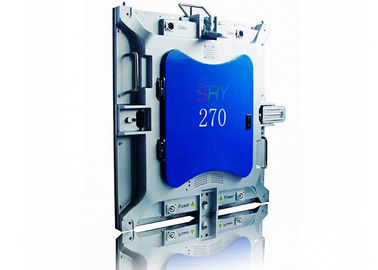

Compared with the traditional LED displays with black aluminum alloy, aluminum alloy covered with stainless steel or sheet metal cabinet, the Die-Casting Aluminum Cabinet LED screen adopts die-casting aluminum cabinet, which makes many new performance advantages.
The cabinet size is 576mmx576mm with light weight. It could be carried by one hand, could be installed quickly within 10 Seconds. The cabinet adopts die-cast Aluminum material with only 65mm thickness, advantages in high strength, excellent ductility, good precision and is difficult to deform.
The same size cabinet can be compatible with different specification displays of different dot pixels.
Feature
1.Fast assembly
It could be installed without complicated tools in hanging and fixed installation.
2.Light weight
With the min-depth 70mm, each cabinet weigh only 8kg.
3.Energy saving
The power consumption for each cabinet is only 180W.
4.Colorful performances
Smart Series P3 is equipped with black LED 2121.The high-density, vivid color processing guarantees you high-end broadcasting show.
Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English.
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
Specification
Pixel Pitch | 3mm |
Pixel Density | 111111dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
Module Size | 192mm x 192mm/192mm x 96mm |
Module Resolution | 64dots x 64dots/64dots x 32dots |
Drive Mode | 1/32 Scan |
Standard Cabinet Size | 576mm x 576mm |
Cabinet Weight | 8KG |
Brightness | ≥1200 cd/sqm |
Viewing Distance | 3m-30m |
Viewing Angle | H: 140°; V:120° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 1000W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications
Business Organizations | Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
Financial Organizations | Banks, insurance companies, post offices, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, squares, stadiums, |
Entertainments | Movie theaters, cinema, clubs, stages |

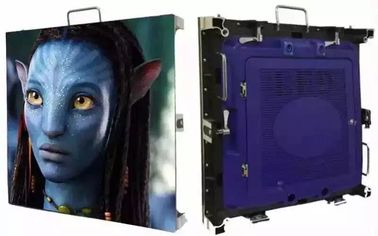

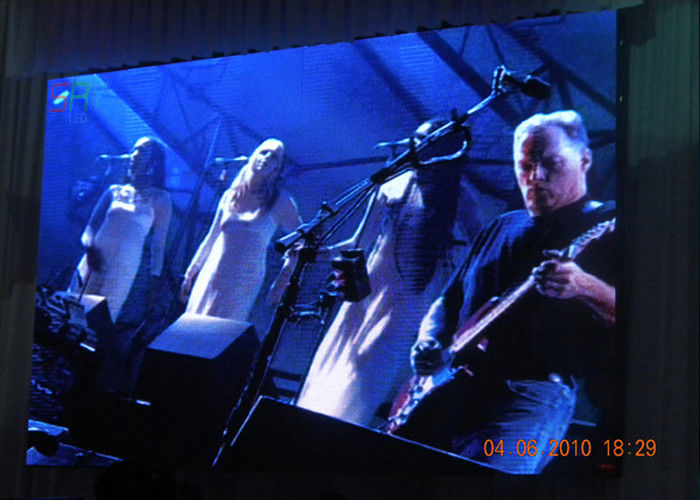

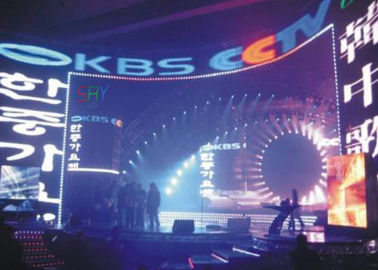

Product Images
