Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Led Type: | SMD2121 |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Cabinet Weight: | 8KG/pcs |
| Environment: | Indoor | Chip Color: | Full Color |
| Module Size: | 192mm X 192mm | Module Resolution: | 64 X 64 Dots |
| High Light: | rental LED screen,hire LED screen |
||
192mm x192mm Rental LED Display P3 LED Video Wall For Indoor
Description
Compared with the traditional LED displays with black aluminum alloy, aluminum alloy covered with stainless steel or sheet metal cabinet, the Die-Casting Aluminum Cabinet LED screen adopts die-casting aluminum cabinet, which makes many new performance advantages.

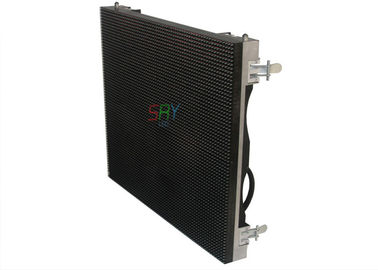

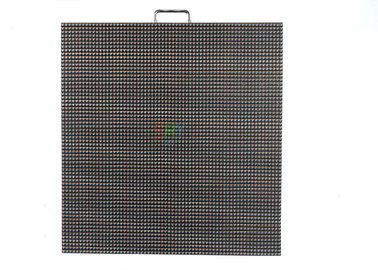

The cabinet size is 576mmx576mm with light weight. It could be carried by one hand, could be installed quickly within 10 Seconds. The cabinet adopts die-cast Aluminum material with only 65mm thickness, advantages in high strength, excellent ductility, good precision and is difficult to deform.
The same size cabinet can be compatible with different specification displays of different dot pixels.
Feature
P3 indoor led display has smooth surface, well brightness mixed, vivid images, fluent video, wide viewing angle. It is widely used in the indoor environment , such as hall, TV studio, hotel, theater ,meeting room, school , hospital, gymnasium, advertising, bar and restaurant etc., to display text , graphic, picture and video etc.
1) High brightness LED lamps and good quality plastic kit.
2) High contrast ratio, outstanding display effect.
3) Light weight, easy to assemble and dismantle.
4) Maintenance can be a single point or single lamp.
Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English.
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
Specification
|
Pixel Pitch |
3mm |
|
Pixel Density |
111111dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
192mm x 192mm/192mm x 96mm |
|
Module Resolution |
64dots x 64dots/64dots x 32dots |
|
Drive Mode |
1/32 Scan |
|
Standard Cabinet Size |
576mm x 576mm |
|
Cabinet Weight |
8KG |
|
Brightness |
≥1200 cd/sqm |
|
Viewing Distance |
3m-30m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1000W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|

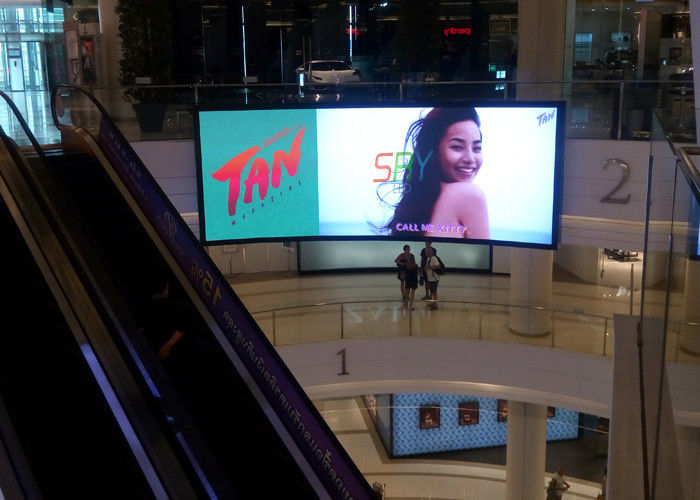

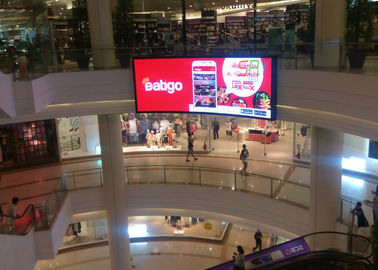

Public Places |
Subway, airports, stations, parks, exhibition halls, squares, stadiums, museums, |
|
Entertainments |
Movie theaters, cinema, clubs, stages |
Like many traditional Electronic products, LED display screen not only need us pay attention to the way of use the process of using , but also need us to know the maintenance the LED display .Through that,it using life will be longer. Here are ten ways of how to maintenance the LED display .
1,Keeping the full color LED display of humidity use environment,do not let any have moisture things go into it.If we let the humidity full color LED display in electric,it will cause the corrosion of full-color display components, and cause permanent damage.
2,The most closely to our user is full color LED display screen. It is very necessary to do well the maintenance work.If the display prolonged exposure in outdoor environment having wind, sun,dust ,it will easily to dirty. After a long time,there are certainly dust on the screen ,which need to be cleaned timely to prevent dust long time parcel surface to influence the watching effect.
3,To avoid meet some problem, we can combine the passive protection with active protection,and try to keep away from the items that will caused some damage to display screen .When you clean the screen ,please gently wipe as much as possible,to minimize the possibility of injury to the LED display .
4,Advising the rest time of led electronic display is above two hours every day.In the rainy season,the large LED display screen at least rest one week or more than once. At least turn on the screen once on a month,light up more than 2 hours.
