Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Led Type: | SMD2121 |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Brightness: | 2000cd/sqm |
| Module Size: | 192mm X 192mm | Module Resolution: | 64 X 64 Dots |
| Drive IC: | JXI5020 | Drive Method: | 1/16 Scan |
| High Light: | rental LED screen,hire LED screen |
||
2000cd / Sqm HD SMD 3 In 1 Mobile Led Advertising Screens Super Light
Description
Compared with the traditional LED displays with black aluminum alloy, aluminum alloy covered with stainless steel or sheet metal cabinet, the Die-Casting Aluminum Cabinet LED screen adopts die-casting aluminum cabinet, which makes many new performance advantages.
The cabinet size is 576mmx576mm with light weight. It could be carried by one hand, could be installed quickly within 10 Seconds. The cabinet adopts die-cast Aluminum material with only 65mm thickness, advantages in high strength, excellent ductility, good precision and is difficult to deform.
With high resolution 111111 dots/sqm, P3 indoor led screen shows HD and vivid images and videos.
Feature
1. SMD 3-in-1 LEDs, HD high definition videos, wide viewing angle.
2. 576x576mm Die-casting Aluminum LED Cabinets, nice appearance and good quality.
3. Super thin, light weight, 8kg/cabinet,with handles and fast locks, easy to install.
4. Seamless and flatness to ensure high quality video effect.
5. Flightcase package, easy to take the LED display to different places according to your need.
6. Suitable for stage rental, event show, concert live show,exhibition, mobile advertising, etc.
7. Available Models: P2.5, P3, P3.91, P4, P4.8, P5, P6.
Specification
Pixel Pitch | 3mm |
Pixel Density | 111111dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
Module Size | 192mm x 192mm/192mm x 96mm |
Module Resolution | 64dots x 64dots/64dots x 32dots |
Drive Mode | 1/16 Scan |
Standard Cabinet Size | 576mm x 576mm |
Cabinet Weight | 8KG |
Brightness | ≥2000 cd/sqm |
Viewing Distance | 3m-30m |
Viewing Angle | H: 140°; V:120° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications
Stage background, bars, club, restaurant, hotel, theater, cinema, meeting room etc.

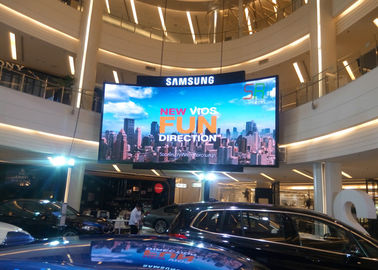

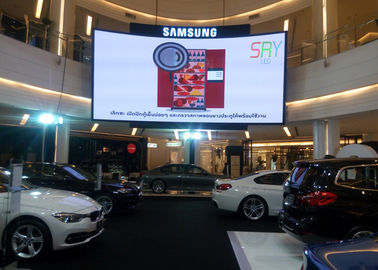

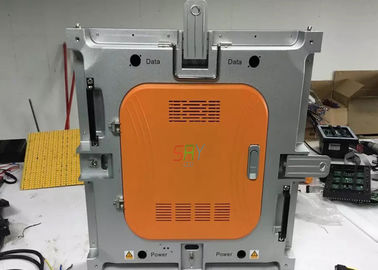

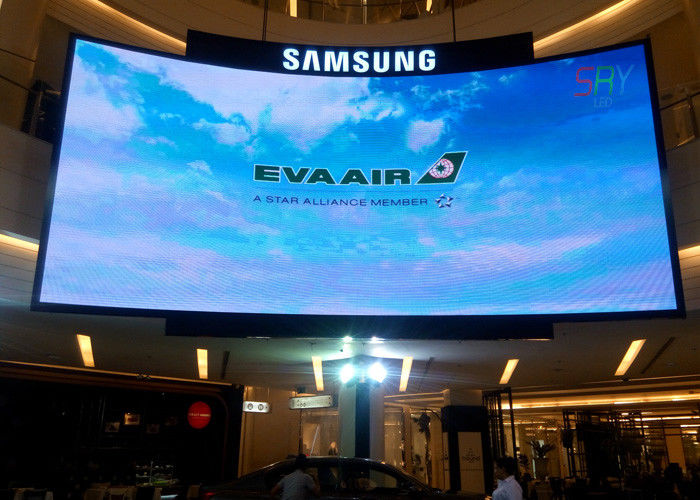

Product Images
Maintanance Way
Like many traditional Electronic products, LED display screen not only need us pay attention to the way of use the process of using , but also need us to know the maintenance the LED display .Through that,it using life will be longer. Here are ten ways of how to maintenance the LED display .
1,Keeping the full color LED display of humidity use environment,do not let any have moisture things go into it.If we let the humidity full color LED display in electric,it will cause the corrosion of full-color display components, and cause permanent damage.
2,The most closely to our user is full color LED display screen. It is very necessary to do well the maintenance work.If the display prolonged exposure in outdoor environment having wind, sun,dust ,it will easily to dirty. After a long time,there are certainly dust on the screen ,which need to be cleaned timely to prevent dust long time parcel surface to influence the watching effect.
3,To avoid meet some problem, we can combine the passive protection with active protection,and try to keep away from the items that will caused some damage to display screen .When you clean the screen ,please gently wipe as much as possible,to minimize the possibility of injury to the LED display .
4,Advising the rest time of led electronic display is above two hours every day.In the rainy season,the large LED display screen at least rest one week or more than once. At least turn on the screen once on a month,light up more than 2 hours.
