Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4.81mm | Module Size: | 250mm X 250mm |
|---|---|---|---|
| Led Chip: | SMD2727 | Drive Method: | 1/13 Scan |
| Waterproof: | IP65 | Cabinet Size: | 500mm X 500mm Or 500mm X 1000mm |
| Cabient Material: | Die Casting Magnesium Or Aluminum | Drive IC: | MBI5024 |
| High Light: | rental LED screen,hire LED screen |
||
P4.81 MBI5024 IC Rental LED Display Die Casting Magnesium large outdoor led display screens
SRYLED outdoor P4.81 die casting aluminum rental led display is slim and portable with die-casting aluminum of 500*500mm and 500*1000mm. This LED display is the most popular in rental market now. Available models:.P3.91,P4.81, P5.68, P6.25.
Features
1.Wide Application: Stage rental events, entertainment, indoor and outdoor environment.
2.Light Weight:Using aluminum profile material, the cabinet weight is only 7kg.
3.High Contrast Ratio: novel design of mask,contrast ratio can reach 2200:1.
4.Quiet:Direct current fan only has little noise.
5.Thin:the thickest part of cabinet is only 60mm.
6.High Precision:each cabinet of precision deviation <0.5mm.
7.High Refreshing:Usually 2500Hz by MBI5024 IC,but it can reach higher refresh rate if use better IC.
8.Convenient and Fast Installation.
9.Best Cabinet Size: 500mm*1000mm and 500mm*500mm
Specification
| Pixel Pitch | 4.81 mm |
| Pixel Density | 43264dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2727 |
| Module Size | 250mm x 250mm |
| Module Resolution | 52dots x 52dots |
| Drive Mode | 1/13 Scan Constant Current |
| Brightness | >6500cd/sqm |
| Viewing Distance | 4m-50m |
| Cabinet Size | 500mm x 500mm/ 500mm x 1000mm |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Weight | 7KG/ 12KG |
| Viewing Angle | H: 120°; V:120° |
| Refresh Rate | 2500HZ |
| Frame Rate | 120frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10％, 50HZ |
| Max Power Consumption | 800W/sqm |
| Ave. Power Consumption | 300W/sqm |
| Storage Temperature | -40℃~+85℃ |
| Working Temperature | -20℃~+65℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof | Front: IP65 Rear: IP54 |
| Operating Humidity | 10%~95% |
| Control System | LINSN/NOVA |
| Control PC | With DVI Graphic card |
| PC Display Resolution | 1280x1024 |
| Operating System | Win 98, Win2000, XP, Win7 ,Win8.etc |
| Video Signal Mode | RF,S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS |
|

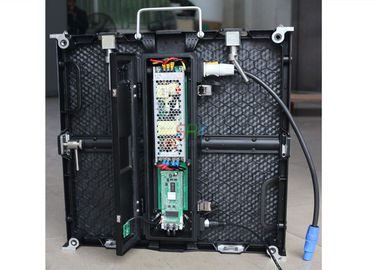

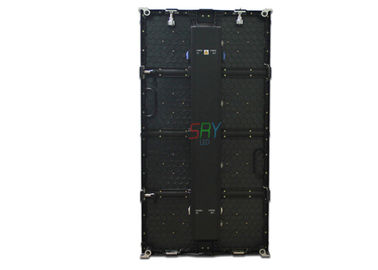

The unique hexagon structure design, flat and firm
The back of the cabinet modules adopts the hexagon structure design concepts. This kind of aluminum structure ensures the feature of firmness and flatness to the largest degree. The whole screen is of typical feature after being assembled.
|
 |
|
HD image brings you more perfect visual experience
The smallest pixel pitch of this series can be 4.81mm. The image is of very high definition. Even viewing in close range, the image will show no obvious pixel grainy. So it applies to outdoor installation perfectly. |
|
|
Fast installation, high precision and less weight
Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight.
|
|
|
High IP grade and applicable to rainy weather
It is shown from the detecting data by third-party professional institutes: the protection level can reach up to IP65, and the product is applicable to any rainy weather, thus can be used in outdoor environments. |
|
|
Brightness are adjustable
Be able to adjust the screen brightness(600-6000nits) based on ambient light changes, greatly reducing your opearating costs. |
|
|
Support All Media Format and Display Mode
|
|
