Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | Module Size: | 256mm X 128mm |
|---|---|---|---|
| Led Color: | Black | Drive IC: | JXI5020 |
| Cabinet Material: | Die Casting Aluminum | Cabinet Weight: | 8KG/pcs |
| Best Viewing Distance: | 4-40m | Brightness: | 1200cd/sqm |
| High Light: | rental LED screen,hire LED screen |
||
P4 Smd Video Wall led panel advertising AC220V / 50hz 1200 Nit Per Sqm
Description
1, Low consumption ＆energy saving, stable performance, highly durable
2, cabinets,fanless design with noiseless power supply
3, High precision CNC maching,precision up to 0.1mm
4, Clear picture without flicker and distortion
5, 2 years warranty, easy to install & maintenance
Features
1) Can be hang or stand in ground.
2) Size and Weight: 512mm*512mm, 8KG.
3) High contrast 2000:1 to ensure a vivid image of our LED display.
4) 4 fast locks with locating pins, very stable to plug the adjacent cabinets.
5) IP43 indoor usage, high brightness 2000 nit, good heat dissipation.
6) Led display with high resolution 62500 dots/sqm to keep good video effect.
Application

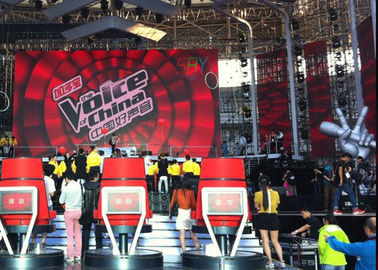

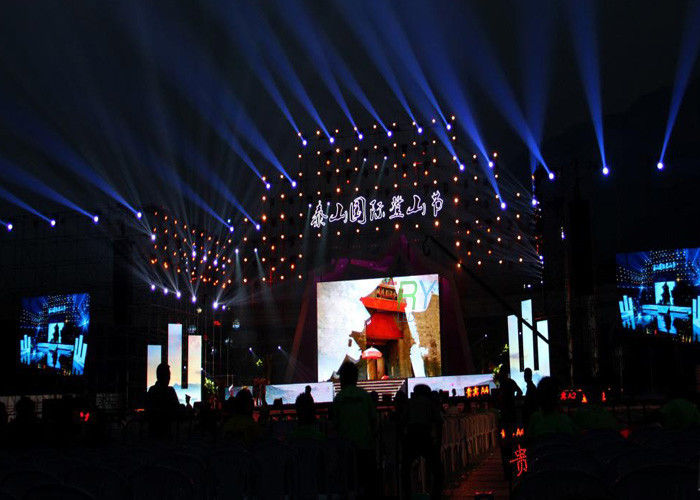

Mainly used for stage background, TV studio, theater, site show, conference, events etc.
Specification
|
Pixel Pitch |
4mm |
|
Pixel Density |
62500dots/sqm |
|
LED Package |
SMD2121 |
|
Module Resolution |
64dots x 32dots |
|
Drive Duty |
1/16 Scan |
|
Standard Cabinet Size |
512mm x 512mm |
|
Brightness |
≥1200 cd/sqm |
|
Best Viewing Distance |
4m-40m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |

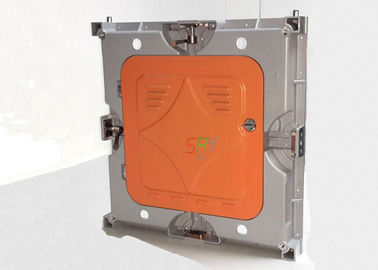

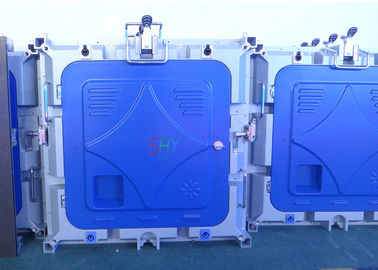

Product Images
FAQ
Q1: How about the size of project?
A1: Please offer the size with "width by height" of project. We will offer the best solution for your project . We will be appreciated it if any drawing files about installation offered.
Q2: Where is it used for?
A2: Indoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with video processors.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Linsn. Also support other controlling system, like Novastar , Colorlight , Xixun , Huidu , etc.
