| Resolution: | 27777dots/sqm | Led Type: | SMD3528 |
|---|---|---|---|
| Module Size: | 192mm X 192mm | Drive IC: | MBI5024 |
| Drive Method: | 1/16 Scan | Contrast Ratio: | 2000:1 |
| Life Span: | 100000hours | Display Content: | Video, Image, Flash, Message |
| High Light: | rental LED screen,hire LED screen |
||
MBI5024 IC Stage Background 6MM led video wall With High Contrast Ratio
Description:
Indoor P6 led display with resolution 27777dots/sqm, will bring clear picture and video to audiences. Its best viewing distance is 6-60m, of course, if size is large enough, even in far place, you can see the led display clearly.
P6 led display cabinet size can be 576mm x 576mm, 768mm x 768mm and 960mm x960mm. 576mm x 576mm usually used for rental and hanging use, and we usually use die casting aluminum and brushed aluminum material cabinet, it is very light to carry, easy to install and remove.
768mm x 768mm and 960mm x960mm P6 led cabinets usually used for fixed installation, it needs less control card per square meter, help customers save money.
Competitive Advantage:
1. Stable performance
We make 48 hours high temperature aging experiments, and choose good brand parts as driver IC,power supply ,connector,etc.
2. Good heat dissipation and low noise
We adopt roller-style mute heat dissipation bottom plate and off-board driving style.
3. Vivid and colorful visual effect
Gray scale can be 16 bit ; the same color LED’s wavelength difference is below 3nm,and the LED materials is the same in one display,so we are sure a very good effect for showing the video, picture and graphic .
4. Smooth surface
We adopt good PCB board and mask as raw material for the module .
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
576mm x 576mm |
| Cabinet Material | Die Casting Aluminum |
|
Cabinet Weight |
8KG |
|
Brightness |
≥1100 cd/sqm |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
700W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |

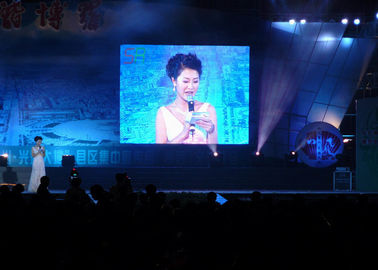

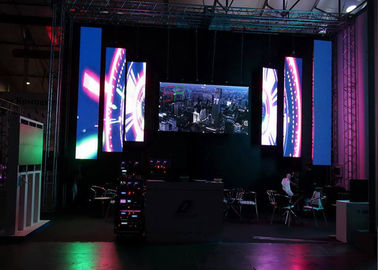

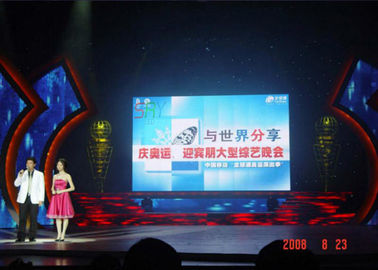

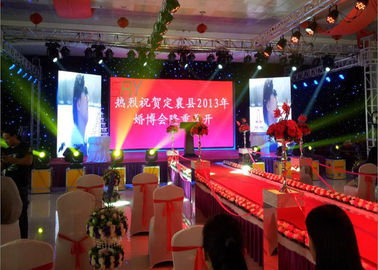

Product images:
