| Pixel Pitch: | 6mm | Led Chip: | Epistar |
|---|---|---|---|
| Module Resolution: | 32 X 32 Dots | Drive IC: | JXI5020 |
| Cabinet Size: | 576mm X 576mm | Material: | Die Casting Magnesium |
| Weight: | 7KG | Control System: | Linsn, Nova, Colorlight, Xixun, Huidu |
| High Light: | rental LED screen,hire LED screen |
||
PH6mm Light Weight Hanging large led panel indoor For Events / Exhibition
Description:
Indoor P6 led display with resolution 27777dots/sqm, will bring clear picture and video to audiences. Its best viewing distance is 6-60m, of course, if size is large enough, even in far place, you can see the led display clearly.

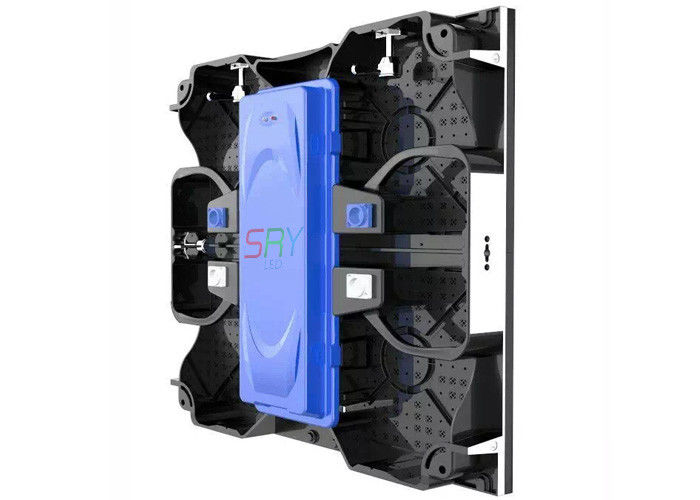

Now we designed a new cabinet die casting magnesium, suitable for rental use, it is similar with die casting aluminum, while weight is lighter. P6 led display cabinet size is 576mm x 576mm, and weight is only 7KG/pcs. It is an excellent product for hanging use.
Features:
1, Light Weight, only 7KG/pcs, lighter than die casting aluminum cabinets.
2, Easy to install and disassembly with fast locks.
3, Compatible source: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA .
4, High Contrast Ratio ensure vivid visual effect.
Competitive Advantage:
1. Vivid and colorful visual effect
Gray scale can be 16 bit ; the same color LED’s wavelength difference is below 3nm,and the LED materials is the same in one display,so we are sure a very good effect for showing the video, picture and graphic .
2. Good heat dissipation and low noise
We adopt roller-style mute heat dissipation bottom plate and off-board driving style.
3. Stable performance
We make 48 hours high temperature aging experiments, and choose good brand parts as driver IC,power supply ,connector,etc.
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
192mm x 192mm |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
576mm x 576mm |
| Cabinet Material | Die Casting Magnesium |
|
Cabinet Weight |
7KG |
|
Brightness |
≥1100 cd/sqm |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Grey Scale |
16 bit |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave Power Consumption |
250W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Software |
Led Studio, Nova Studio, LedEditor etc |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
Product images:
