| Pixel Pitch: | 10mm | Module Resolution: | 32 X 16 Dots |
|---|---|---|---|
| Led Type: | SMD3535 RGB 3 In1 | Cabinet Size: | 640mm X 640mm |
| Cabinet Weight: | 10KG | Brightness: | 6000cd/sqm |
| Cabinet Color: | Gold, Orange, Blue, Black | Life Span: | 100,000hours |
| High Light: | rental LED screen,hire LED screen |
||
Good Consistency Rental LED Display P 10 640mm x 640mm Die Casting Aluminum
Description
P10 die casting aluminum led display standard cabinet size is 640mm x 640mm, it is mainly used for rental and hanging use. Besides P10 outdoor SMD model, 640x640mm led cabinets also can used for outdoor P5 SMD, P6.67 SMD, P6.67 DIP, P8 DIP, P10 DIP.
For outdoor P10 led display, there are two types, P10 SMD and P10 DIP. They has below main differences.
Brightness : DIP is higher than SMD
Consistency : SMD is better than DIP
Flatness : SMD is better than DIP
Weight : SMD is lighter than DIP
With development of high-technology, now SMD led display is more and more popular for outdoor use.
Features:
1, Control system can be various, Linsn, Nova, Colorlight, Xixun, Huidu etc.
2, Power supply. Meanwell, Chuanglian and G-energy is available.
3, Led Chip, SMD 3 in 1.
4, Cabinet can be die casting aluminum and die casting magnesium.
Competitive Advantages:
We adopt famous brands raw material for our product
1) LED Chip: well-known international brand (Such as nationstar, Epistar, Silan, Opto, Kinglight)with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: Taiwan MBI, JXI , avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: G-Energy, Chuanglian and Meanwell, the power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
RGB 3 in 1 |
|
LED Package |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
250W/sqm |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
Applications:

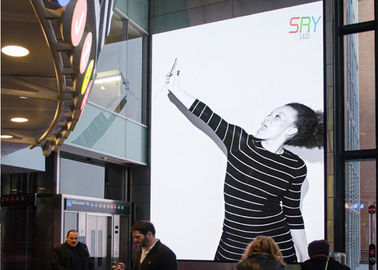

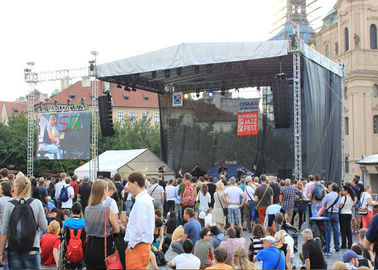

Stage background, clubs, bars, events, conferences, meeting room, commercial show etc.

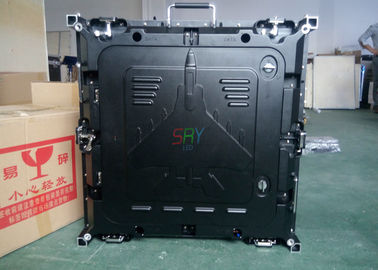

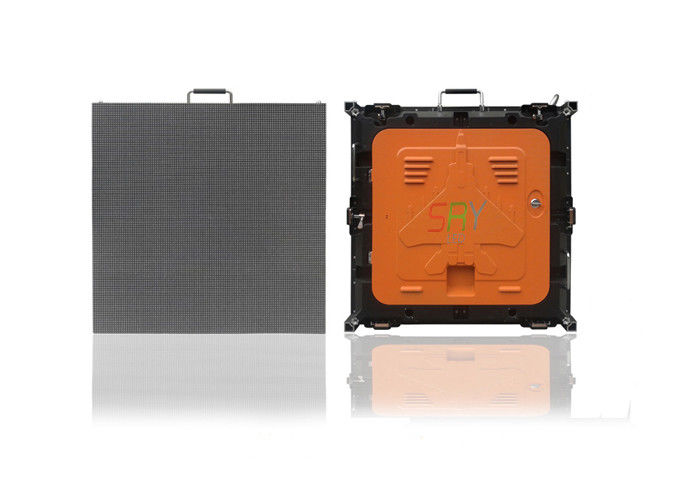

Product Images:
