Product Details:
Payment & Shipping Terms:
|
| Pixel Density: | 10000dots/sqm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Led Chip: | Nationstar | Cabinet Size: | 640mm X 640mm |
| Cabinet Material: | Die Casting Aluminum | Working Temperature: | -20℃~+65℃ |
| Warranty: | 2 Years | Control System: | Nova, Colorlight, Xixun, Huidu |
| High Light: | rental LED screen,hire LED screen |
||
Nationstar SMD3535 p10 outdoor led display screen Wireless Control System
Description
P10 die casting aluminum led display standard cabinet size is 640mm x 640mm, it is mainly used for rental and hanging use because of light weight and easy installation. Besides P10 outdoor SMD model, 640x640mm led cabinets also can used for outdoor P5 SMD, P6.67 SMD, P6.67 DIP, P8 DIP, P10 DIP.
For outdoor P10 led display, there are two types, P10 SMD and P10 DIP. They has below main differences.
Brightness : DIP is higher than SMD
Consistency : SMD is better than DIP
Flatness : SMD is better than DIP
Weight : SMD is lighter than DIP
With development of high-technology, now SMD led display is more and more popular for outdoor use.
Features:
1. High brightness, over 6000 nits, can work well in day time even under direct sunshine
2. Die-casting aluminium cabinet, tolerance is less than 0.1mm , surface is very flat .
3. IP65 standard,dustproof and waterproof .No problem to work for long time outside.
4. High refresh rate: Over 2000Hz/s, no scan lines when taking video and pictures .
5. The video on LED screen is very fresh and vivid .
6. Packed by flight cases , very easy for transportation
.
7. It's ultra-thin and super -light , save lobor cost when doing rental business.
8. It can be hung on truss or installed on floor .
Competitive Advantages:
We adopt famous brands raw material for our product
1) PCB Board: adopt 4-layer design.
2) LED Chip: Nationstar chip, with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
3) Connector: Aerial grade brands ensure the stable transmission of power and signal.
4) Power supply: G-Energy, Chuanglian and Meanwell, the power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
5) Driving IC: Taiwan MBI, JXI , avoidable the defective phenomena, such as dark bright, virtual light and so on.
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
RGB 3 in 1 |
|
LED Package |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Grey Scale |
16 bit |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
| PC System | WIN98, 2000 , XP, WIN7, WIN8, WIN10 |
Applications:
Stage background, clubs, bars, events, conferences, meeting room, commercial show etc.

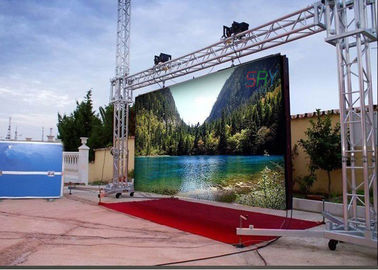

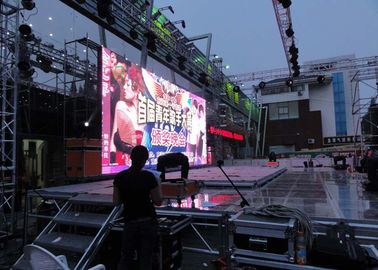

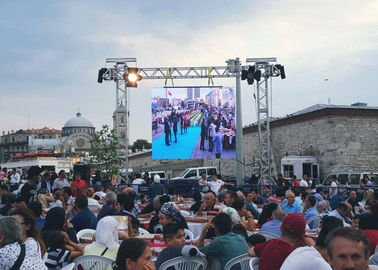

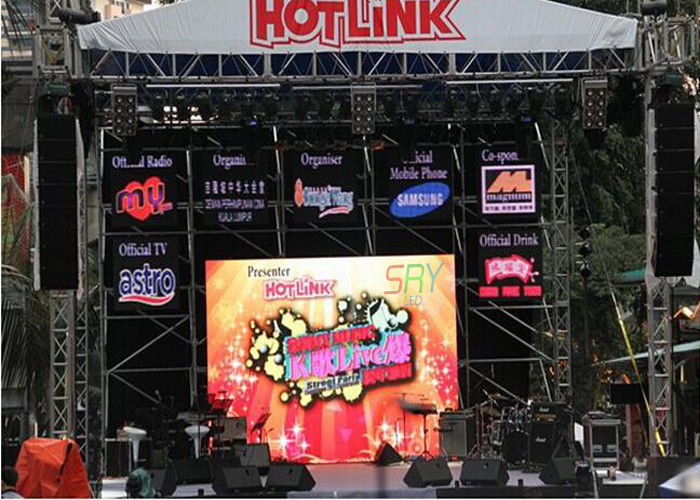

Product Images:
