Product Details:
Payment & Shipping Terms:
|
| Resolution: | 27777dots/sqm | Color: | RGB Full Color |
|---|---|---|---|
| Application: | Outdoor | Waterproof: | IP65 |
| Installation Way: | Hanging | Module Size: | 192mm X 192mm |
| High Light: | rental LED screen,hire LED screen |
||
Super Clear 3D Video p6 outdoor led screen Hanging On Truss For Concert Show
Specification
P6 outdoor rental led panel with high resolution 27777dots/sqm, it shows super clear iamges and videos to audience. Led cabinet size is 576mm x 576mm, weight is only 8KG/pcs, it is very easy to install and disassembly.
Feature
1) 16 bit color, 16384 gray scale, refresh rate over 2500Hz/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
2) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.2mm so the surface is very smooth, almost no gap between adjance cabinets.
3) The side locks is fast locks, this is unique among all die-casting aluminum cabinets.
4) With power and signal connectors, very easy to install and dismantle.
5) It can be hung on truss or stacked on floor.
6) Good thermal design, excellent heat dissipation even no fan installation.
Applications
Outdoor stage background, concert show, fashion show, rental events etc.
Specification
|
Pixel Pitch |
6mm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/8 Scan, Constant Current |
|
Brightness |
>6500cd/sqm |
| Led Chip | Epistar |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
400W/sqm |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10%~95% |

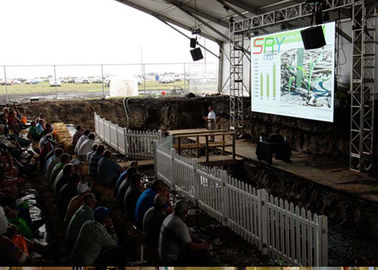

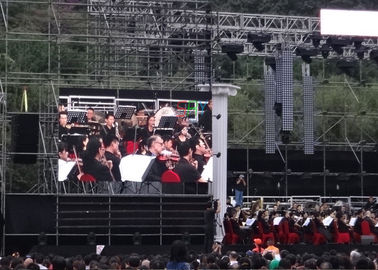

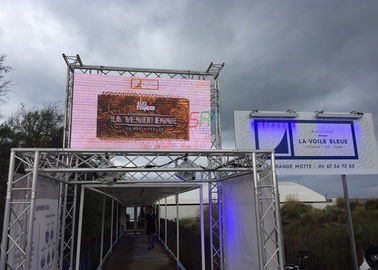

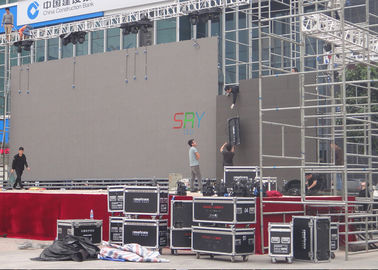

Product Images
FAQ
Q1: What's the pixel pitch for LED Display Screen ?
A1: This product is outdoor P6, besides, we have Indoor P2.5, P3, P3.91, P4, P4.81, P5, P6, P7.62, P10. Outdoor P4.81, P5, P6.25, P6.67, P8, P10, P16.
Q2: Where is it used for?
A2: Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with video processor.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Linsn. We also use Nova, Colorlight, Xixun, Huidu control card.
Q5: How to use the software.
A5: We will send you CD, there is operation manual. Or you can download here, Linsn software guide.pdf If still not know how to use, our engineer can help you by remotely.
