Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91mm | Cabinet Size: | 500mm X 1000mm |
|---|---|---|---|
| Led Chip: | SMD2121 Black | Drive Method: | 1/16 Scan |
| Installation Way: | Hanging Or Stand | Voltage: | 110V-220V AC |
| Control Card: | Linsn , Nova, Colorlight | PC System: | Windows 98, 2000, XP, 7, 8, 10 |
| High Light: | rental LED screen,hire LED screen |
||
Outside Light Weight P3.91 / P4.81 led display board for advertising , 2500Hz
Available Led Pixel: P3.91, P4.81, P5.25, P6.25, P7.8, P8.9, P10.4, P12.5
Description
1. Vertical/Horizontal viewing angle 140degree.
2. No need fan, noiseless, low power comsumption
3. Fast locks design, cabinets can be easily assemblied in 10 seconds
4. Fast lock for quick and easy installation, maximum support 50pcs hanging in a collum

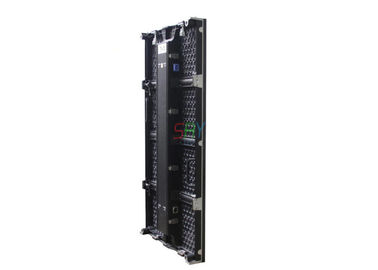

5. Die-cast aluminum housing, Size: 500 x 1000mm, seamless connection,0.1mm gapline between 2 cabinets.
6. Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode,applicable for TV program, VCD/DVD and live show.
Feature
1) Lightweight
2) Seamless connection
3) Ultra thin
4) Easy to maintain
5) Easy to install
6) Noiseless
7) Ghost Cancelling
8) High refresh rate
9) Low brightness and high gray scale
10) Low power consumption
Competitive Advantages
1, 24/7 after-sale service
2, 48 hours aging for modules and led screens
3, Engineer guide install and operate online
4, Offer full set of drawing
Specification
| Pixel Pitch | 3.91mm | 4.81mm | 5.25mm | |
| LED type | RGB 3in1 SMD2121 | RGB 3in1 SMD2121 RGB 3 in 1 SMD3528 | ||
| Pixel Density(dot/s.q.m) | 65536 | 43402 | 36864 | |
| Resolution(WxH) | 256*128dot | 208*104 dot | 192*96 | |
| Cabinet size | 500x1000x79.5mm | |||
| Weight | 16kg | 16kg | 16kg | |
| Waterproof rate | IP43 | |||
| Brightness | 1300nits | 1200nits | 1100nit | |
| View Distance | 3m-40m | 4m-50m | 5m-60m | |
| Viewing Angle (H/V) | 140°/120° | |||
| Gray Scale | 16bit | |||
| Color type | 68 Billion | |||
| Max.Power Consumption | 250W/PCS | 120W/PCS | 110W/PCS | |
| Ave .Power Consumption | 130W/PCS | 60W/PCS | 45W/PCS | |
| Refresh rate | 2500Hz | |||
| Applied environment | INDOOR | |||
| Controller | Synchronous display with control PC by DVI | |||
| Support Input | Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI | |||
| Power input | AC 110-220V±10% | |||
| Environment | temperature -20°C~+50°C,humidity 10~90% RH | |||
| Operating Life | 50,000hour | |||
Product Images
