Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6.25mm | Application: | Outdoor |
|---|---|---|---|
| Cabinet: | With Curved Lock | Cabinet Size: | 500mm X 1000mm |
| Viewing Distance: | 6m - 70m | Waterproof: | IP65 |
| High Light: | rental LED screen,hire LED screen |
||
Waterproof Curved Rental LED Display Slim P6.25 For Concert Show
Description

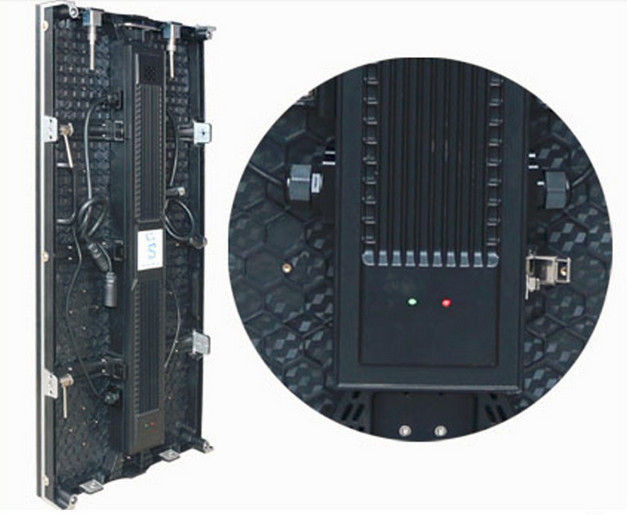

P6.25 Led video panel, cabinet size is 1000 x 1000mm, it is usually used for outdoor rental use, such as concert, stage background, new product conference, wedding, events. With curved lock, its cabinets can be adjusted as cuved screen. Please see below pictures:
Features
1, Strong cabinet.
Wireless: displaying, driving and receiving are integrated to simplify the complex inner structure, improving its safety and stability.
2, Unique Structure.
With 75°screen frame and fast installed connector, 15° inner or outer arc assembly.
3, Fastly heat dissipation
Adopt the most advanced heat conducting technology, realizing the design of fan free and noiseless.
4, Available model
Indoor series P3.9, P4.8, P5.2, P6.25, P7.8, outdoor series P4.81, P6.25, P7.8, P8.9, P10.4.
Application

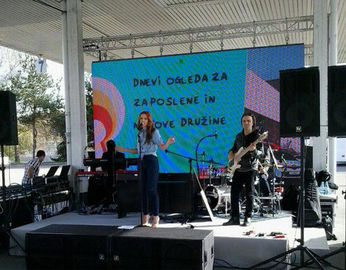

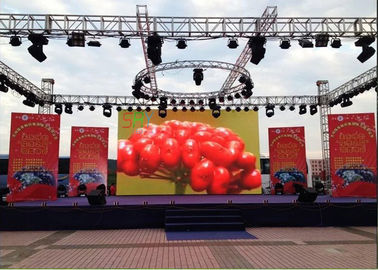

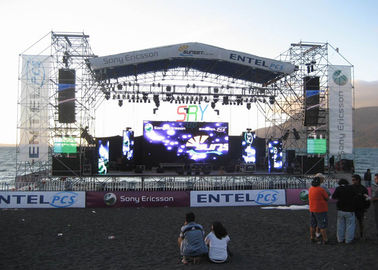

Outdoor stage backdrop, concert, fashion show, events, conference etc.
Specification
| Die casting aluminum Rental LED Display Screen | ||
| Module | Pitch/mm | P6.25 |
| Module size/mm | 250x250 | |
| Density of pixel/(dots/m2) | 25,600 | |
| Pixel composition | 1R1G1B | |
| Led encapsulation | SMD3535 | |
| Resolution of module | 40x40 | |
| Main | Optimum viewing distance | ≥6 |
| View angle / ° | 140 H,120 V | |
| Average power consumption/W/M2 | 400 | |
| Max power consumption/W/M2 | 960 | |
| Size of cabinet/mm | 500x1000 | |
| Weight of cabinet/kg | 16 | |
| Driving method | 1/10 scan constant current | |
| Frame frequency / Hz/S | ≥60 | |
| Refresh rate Hz/S | ≥1000 | |
| Luminance of white balance | ≥6000 nits | |
| Operation of Environmental Temperature/℃ | below 30 to above 50 | |
| IP rating | Front,IP65;Rear,IP43 | |
| Working vlotage | 110-220 VAC/+/- 10% | |
| Grey scale/color | displaying colors≥16.7M(synchronized) | |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |
| Control system | (sending card,receiving cards and Hubs) | |
| Average of non-failure life | >50,00h | |
| Life span | >100,000h | |
| Functionaless dot rate | <0.0001 | |
