Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 320mm X 320mm |
|---|---|---|---|
| Drive Method: | 1/4scan | Waterproof: | Front: IP65, Back: IP54 |
| Brightness: | 7500 Nit | Viewing Distance: | 10-100m |
| Working Temperature: | -20℃ ~ +60℃ | Average Consumption: | 300W/SQM |
| High Light: | Indoor LED Display Module,LED screen Module |
||

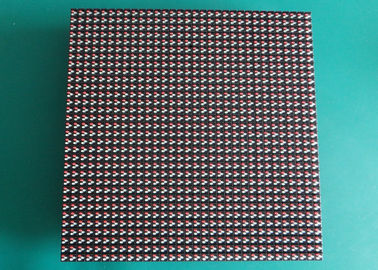

Front Access led screen module 32 x 32 Dots Pixel Pitch 10mm DIP Led Panel
Product Detail

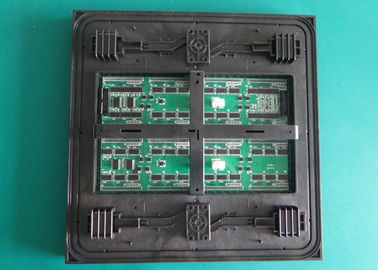

1. Front or rear maintenance option
Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
2. Energy Saving≥50%, Environment Protection
Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.
Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
3. Free Back Service Path, Excellent Display Effect
Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.
Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
4. IP65, Fast Installation and Maintenance
IP65 for modules, meets outdoor naked installtion requirements.
Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.
5. Firm, Flat and Backup Solution
Dark black surface,firm and flat, anti-UV module parts, which gurantees screen in firm shape.
Power supplier and control system, backup solution is available to gurantee.
Camera optional, Lan cable, 3G, WIFI, Multi-control, ethernet for data trasmittance options.
Specificition:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
DIP346 |
|
Module Resolution |
32dots x 32dots |
|
Drive Duty |
1/4 Constant Current |
|
Viewing Angle |
H: 120°; V: 70° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V-20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Storage Temperature |
-40℃ ~ +80℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
