Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | Module Size: | 256mm X 128mm |
|---|---|---|---|
| Drive Method: | 1/8 Scan | Brightness: | 6500cd/sqm |
| Interface: | HUB75 | Thickness: | 15cm |
| IC: | MBI5124 | Weight: | 0.35KG/pcs |
| High Light: | Indoor LED Display Module,LED screen Module |
||
High Refresh Outdoor P4 LED Display Module SMD 1921 256mm x 128mm
Description
P4 outdoor led display module is a new product for outdoor led module, with 62500 dots/sqm, P4 outdoor led modules shows very clear images and videos, offer audiences vivid visual effect. And it is waterproof to use in rainy day. Since its pixel is only 4mm, so audiences can see the led dislay from very short distance.
Feature
1, High refresh: 3000HZ, MBI 5124 IC
2, High brightness: 6500cd/sqm
3, Viewing angle: V: 140° , H: 140°
4, Best viewing distance : 2m -100m
5, Waterproof : IP65
Applications
Commercial advertising, buildings, night club, entertainment events, business establishments, stock exchange centers, bus station, schools, telecommunications, stadiums, shopping malls, railways, airports, high way etc.
Specification
|
Pixel Pitch |
4mm |
|
Pixel Density |
62500dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD1921 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
64dots x 32dots |
|
Drive Mode |
1/8 Scan Constant Current |
|
Standard Cabinet Size |
512mm x 512mm |
| Cabinet Material | Die casting aluminum |
|
Cabinet Weight |
8KG |
|
Refresh Rate |
3000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |

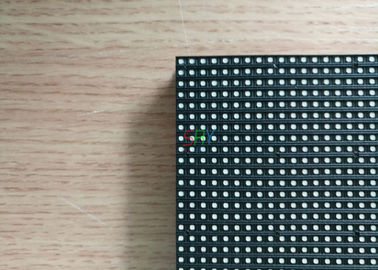

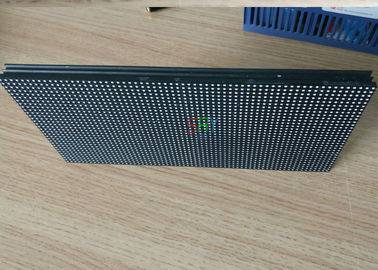

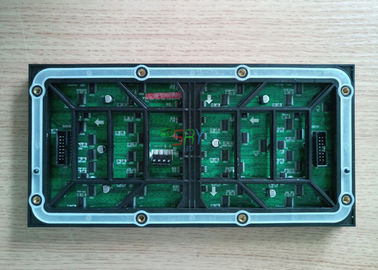

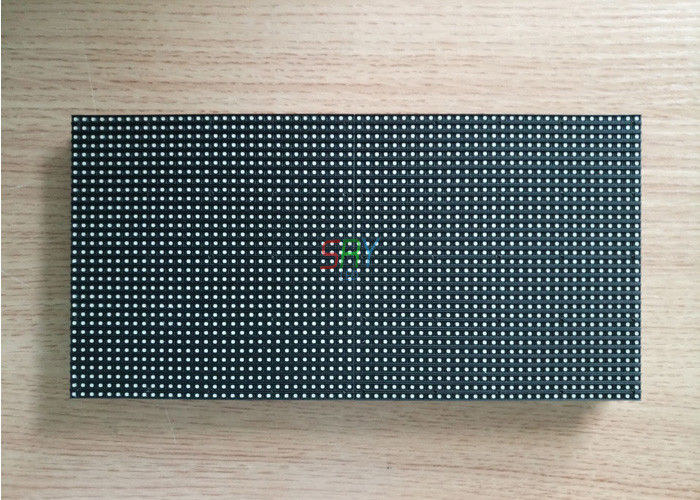

Product Images:
