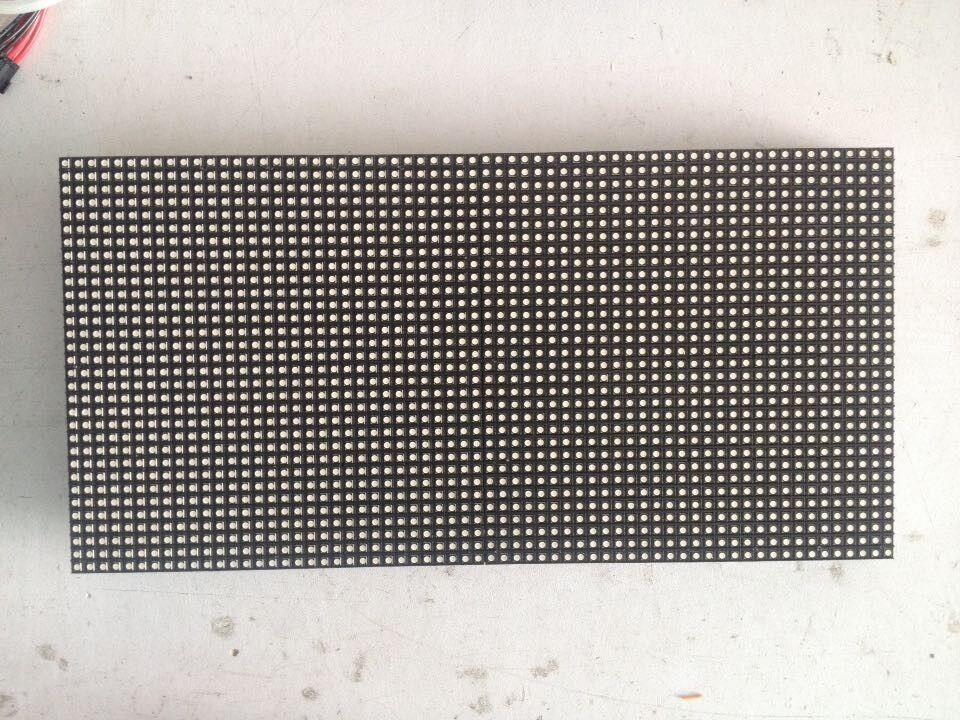

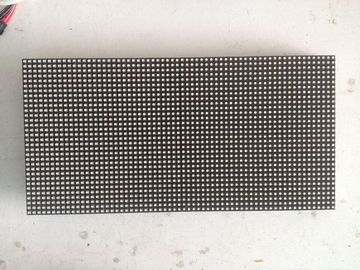

P5 SMD 3528 LED Display Module With 320mm x 160mm Video Led Display

Large Image : P5 SMD 3528 LED Display Module With 320mm x 160mm Video Led Display

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE/RoHS
Model Number:	SRY-IF-P5

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	500-900USD/sqm
Packaging Details:	Wooden box or flight case
Delivery Time:	7-15 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	3000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	Resolution:	40000 Dots/sqm
Led Chip:	SMD3528	Drive IC:	JXI5020
Cabinet Size:	640mm X 640mm	Interface:	Hub75
High Light:	Indoor LED Display Module , LED screen Module

P5 SMD 3528 LED Display Module With 320mm x 160mm Video Led Display

Description

(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

(4) Line-Double technology is adopted for the picture adjustment.

(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.

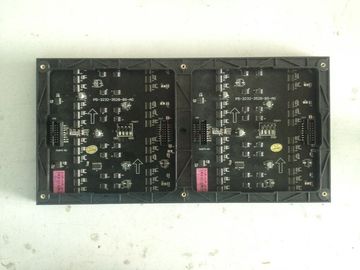

SMD3528	LED Module

SMD3528

LED Module ce rohs fcc 3528 p5 indoor led display module

Quick Detail

1, 5mm Pixel Pitch

2, 40000 dots/sqm

3, Viewing distance : 3-100m

4, Led Type : SMD3528

5, Drive Method : 1/16 scan

Specification

Pixel Pitch	5mm
Pixel Density	40000dots/sqm
Color Configuration	1R1G1B
LED Package	SMD3528

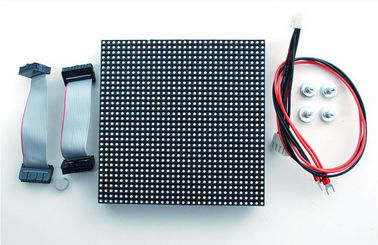

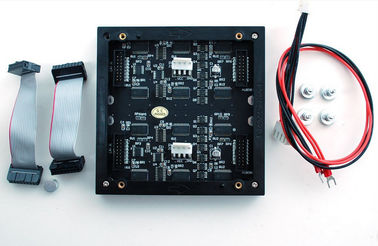

Module Size	320mm x 160mm/ 160mm x 160mm
Module Resolution	64dots x 32dots/ 32dots x 32dots
Brightness	≥2000 cd/sqm
Viewing Distance	5m-50m
Viewing Angle	H: 140°; V:140°
Refresh Rate	2000HZ, adjustable by software
Power Input	AC110V/ 220V ±10％, 50HZ
Ave. Power Consumption	300W/sqm
Storage Temperature	-30℃~+70℃
Working Temperature	-20℃~+50℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof Level	IP43
Operating Humidity	10%~90% RH
Control Method	Synchronous, Asynchronous, 3G,WIFI,USB
Control PC	With DVI Graphic card
Operating System	Win 98, Win2000, XP, Win7, Win8
Video Signal Mode	RF, S-Video, RGB, RGBHV, YUV, YC etc
