Product Details:
Payment & Shipping Terms:
|
| Module Size: | 160mm X 160mm | Resolution: | 160000 Dots/sqm |
|---|---|---|---|
| Module Weight: | 0.15KG | Led Chip: | Epistar |
| Drive IC: | JXI 5020 | Drive Method: | 1/32scan |
| Interface: | HUB75 | Warranty: | 2 Years |
| High Light: | Indoor LED Display Module,LED screen Module |
||
1/32 Scan Indoor LED screen Module Small Pitch 160mm x 160mm SMD P2.5 LED Module
Description
1. Built specially for the demanding rental and staging applications, 2.5mm LED system for indoor AV rental use: easy and fast installation and unrivalled reliability.
2. The ultra-thin design, die-casting aluminum structure, light weight, wide viewingangles, superb color uniformity across entire surface of the display.
3. High refresh rate ensure no flicker for live videos and fast pictures. High resolution creates great visual impact even at very short viewing distance.
4.Add to the above listed features that enable P2.5 LED display as a preferred option for high-end indoor events.
Features
1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal.
2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
3) The brightness can be adjustable to meet the need of changing requirement of customer in environment.
4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
6) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger.
7) Steady and reliable system, with strong anti-interference ability and long service life that can continually work for over 24 hours,and it’s easy to operate the system.
8) Convenient installation and maintenance of display modules.
Specification
| P2.5 Indoor SMD LED Modules 160x160 | ||
| Unit Module | Item | Parameter |
| Model Number | P2.5-16S | |
| Module size | 160mm*160mm | |
| Pixel pitch | 2.5mm | |
| Pixels Density | 160000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Pixel resolution | 64dots(W)*64dots(H) | |
| Max Power consumpion | 80W | |
| Weight | 0.25kg/pc | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥2000cd/m2 | |
| Unit Cabinet | Cabinet Dimension | 640mm*640mm |
| Quanty of Module | 16 | |
| Power supply | 5V/40A | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 256*256 | |
| Best viewing distance | 2M~30M | |
| Best viewing distance | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃~+85℃ |
|
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | AC110V/220V±10% |
| Average Power consumption | 300W/sqm | |
Applications
Banks, insurance companies, post offices, hospital, schools, supermarket, large-scale shopping malls, star-rated hotels, Movie theaters, clubs, stages

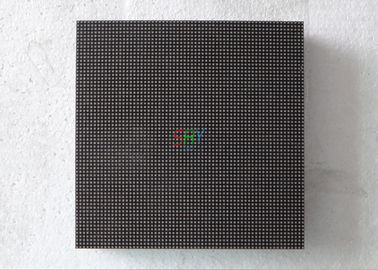

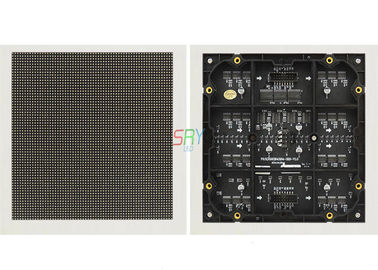

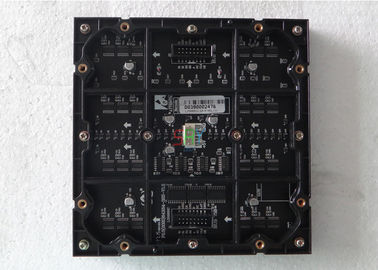

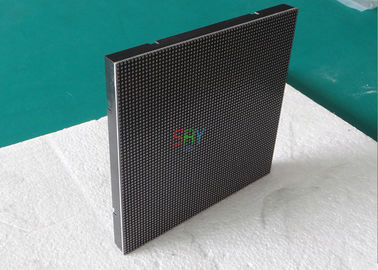

Product Images
