Product Details:
Payment & Shipping Terms:
|
| Module Size: | 160mm X 160mm | Resolution: | 160000 Dots/sqm |
|---|---|---|---|
| Module Weight: | 0.15KG | Led Chip: | Epistar |
| Drive IC: | JXI 5020 | Drive Method: | 1/32scan |
| Interface: | HUB75 | Warranty: | 2 Years |
| High Light: | Indoor LED Display Module,LED screen Module |
||
160000 Pixel P2.5 Led Matrix Display Module 640mm x 640mm Led Panel
Description
Rental application: Good price with high performance, available in pixel pitch of P1.6,P1.9,P2.5
Lightweight, Convenient in transporting and installing & saving labor cost, suitable for flow show.
Nice appearance and simple structures, unit cabinet of 640mmx640mm, die cast aluminum
Jointed correctly, being installed & dismounted by one person without tool.
Humanized operating interface with breakdown indicator lights, easy to maintain.
Application
P2.5 events led display screen is the perfect solution for Conference meeting room,live broadcast, Concert, TV show, live show, stage background,club, nightclub and other rental business.
Features
1, 160000 pixel dots per square meter resolution
2, With super-high brightness LED, high contrast
3, High frame frequency, wider view angel
4, With module development and distributed scan technology, high reliability
5, Universal AC input / full range
6, IP43 protection level, indoor solution
7, PC synchronous or asynchronous control(optional)
8, Use common video play software, easy to use
9, 2 years warranty
Packaging
Cabinets is usually packed by wooden case.
Flight case is used for packing rental project cabinet.
We will choose the most practical package as to customers' requirements.
1) Carton with foam plate / EPE
2) Neutral packaging without logo
3) Anti-shaking wooden case package
4) Flight case package with convenient transport
5) Customizable package can be designed and made.
Shipping
We recommend the suitable shipping and delivery method as to goods condition.
1) LCL/FCL by sea shipment
2) Air cargo shipment
3) Courier DDU delivery, DHL/FedEx/UPS/TNT
Our safe and reliable package can guarantee safe transportation and delivery for your goods
Specification
| Model No. | P2.5 |
| Pixel Pitch | 2.5mm |
| Module Size | 160*160mm |
| Pixel Density | 160000 |
| Pixel composition | 1R1G1B |
| Module Resolution | 64*64 |
| The Optimum Viewing Distance | 2~20m |
| The Optimum Viewing Angle | H:120° V:120° |
| Average PowerConsumption | 300W/m2 |
Standard Cabinet Size |
640mm*640mm |
| Cabinet Weight | 12Kg |
| Driving Method | 1/16 Scan |
| Operating Environment Temperature | between -20°C and 60°C |
| Operating Voltage | 110V / 220V±10% |
| Grey Scale | Display Colors≥65.7trillion color(Synchronized) |
| Brightness Adjustment | 1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically |
| Input Signal | RF,S-Video,RSBHV,YUV,YC,COMPOSITION |
| Control System | PC+DVI display card+master card + optical fiber transmission |
| Average No Failure | ≥1000 hours |
| Time Life-span | >100000 hours |
| Transmitting Distance | Internet cable:<100m |
Applications
Banks, insurance companies, post offices, hospital, schools, supermarket, large-scale shopping malls, star-rated hotels, Movie theaters, clubs, stages

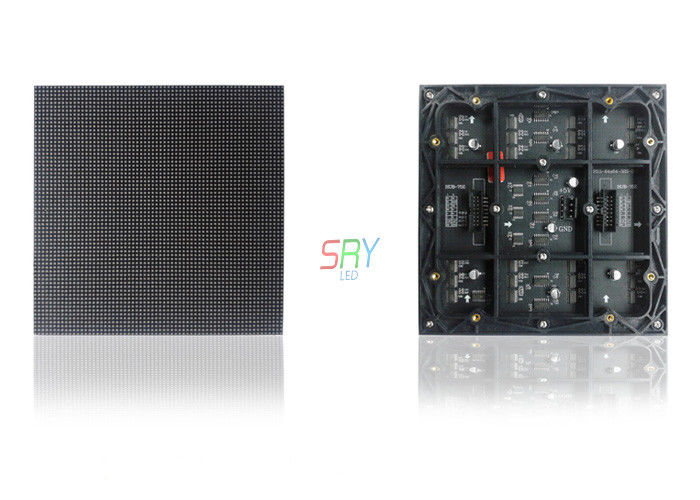

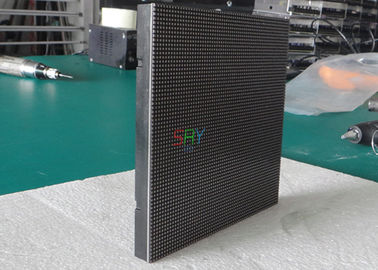

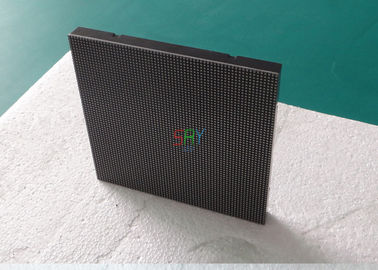

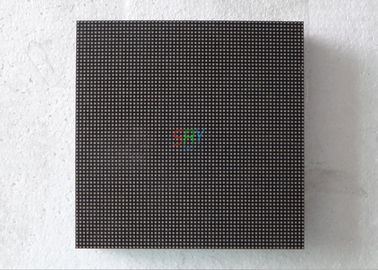

Product Images
