Product Details:
Payment & Shipping Terms:
|
| Name: | P4 Led Module | Resolution: | 62500dots/sqm |
|---|---|---|---|
| LED Encapsulation: | SMD2121 | Module Size: | 256mm X 128mm / 128mm X 128mm |
| Drive Scan: | 1/16scan | Control Card: | Linsn / Nova |
| High Light: | Indoor LED Display Module,LED screen Module |
||
P4 SMD2121 RGB Stage Background LED Display screen Module Linsn / Nova - Star Control
Decription:
1. Easier maintainence, High resolution, Good contract, Light Weight, easy to install. can be useful any indoor advertising, such as showroom, meeting room, hotel, Restaurant, matro etc place.
2. Can automatic to adjustable the brightness as to ensure different environment.
3. Higher resolution can make HD with 4K effect Video.
4. We make best design with high cost- efficiency according to the actual needs of our customers.
5. we can offer OEM as client's required.
1. Pure color, brilliant colors, breathtaking grayscale
2. high contrast level, High color saturation, Better display performance
3. Good heat dissipation function.
4. Standard cabinet design, makes stocking, transportation, construction, spare parts and maintenance easier and simplely.
5. widely view angles ( More than 140degrees ) & Extremely close view distances .
Specification:
|
Pixel Pitch |
4mm |
|
Pixel Density |
62,500dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2121 |
|
Module Size |
128mm x 128mm |
|
Module Resolution |
32dots x 32dots |
| Cabine Weight | 0.13kg |
|
Drive Duty |
1/16 Constant Current |
|
Brightness |
>1,200nits |
|
Viewing Distance |
4m - 40m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
550W/sqm |
|
Ave. Power Consumption |
185W/sqm |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10% - 95% |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
Application
Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

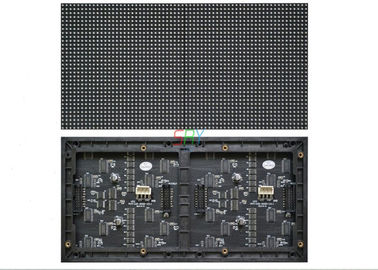

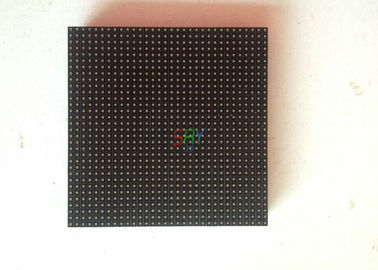

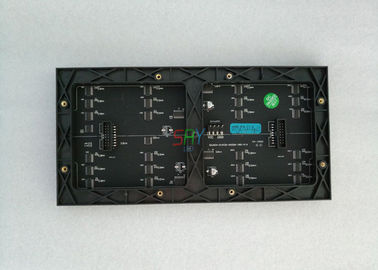

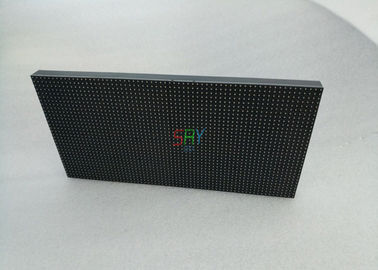

Cabinet Pictures
