Product Details:
Payment & Shipping Terms:
|
| Product Name: | P2.5 Indoor Led Screen | Resolution: | 160000 Dots/sqm |
|---|---|---|---|
| Led Color: | Black | Color: | RGB |
| Refresh Rate: | 2500HZ | Cabinet Size: | 640mm X 640mm |
| High Light: | indoor LED video wall,indoor full color LED display |
||
HD Small Pixel Pitch indoor LED display board Die Cast P1.9 P2.5 Advertising
Description
1, Seamless connection, perfectly replace DLP and MLCD;
2, Special design for the mask to realize higher contrast (5000:1) and larger viewing angle (160°);
3, Signal backup and power backup;
4, Brightness and chromaticity calibration and self-adjustment;
5, Mixed use of cabinets from different batches;
6, Anti-ghost andTrue color reproduction;
7, High gray scale (16bit) and high refresh rate (2500Hz);
8, Lower power consumption with high PFC power supply, the drive current of each LED lamp only less than 30mA;
9, Supporting synchronous control /3G wireless control/Asynchronous control.
Competitive Advantages
The led screen cabinet is light weight. It could be carried by one hand, could be installed quickly within 10 Seconds.
2.The cabinet adopts advantages in high strength, excellent ductility, and good precision and is difficult to deform.
3.Module designed cabinet is easily assembled and installed at any location, its maintenance is very convenient.
4.The cabinet design is simplified to be compatible within different dot pixels; also it is with good cooling design without fan or air condition etc. which reduces cabinet weight, and lowers noise; low installation cost and low consumption save operating cost.
Specification
|
Pixel Pitch |
2.5mm |
|
Pixel Density |
160000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/32 Scan |
|
Standard Cabinet Size |
480mm x 4800mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
6KG |
|
Brightness |
1600 cd/sqm, adjustable by software |
|
Viewing Distance |
2m-25m |
|
Viewing Angle |
H: 140°; V:120° |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
400W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
Applications
It can be widely used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.

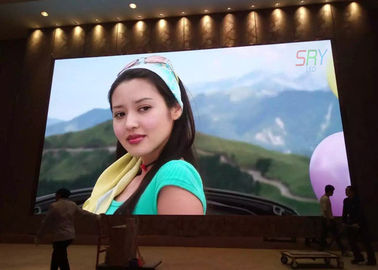

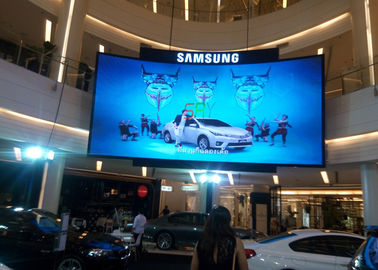

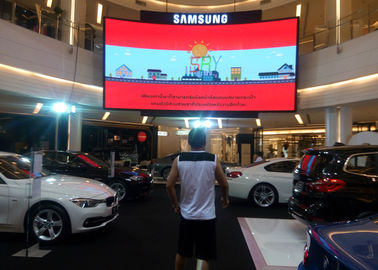

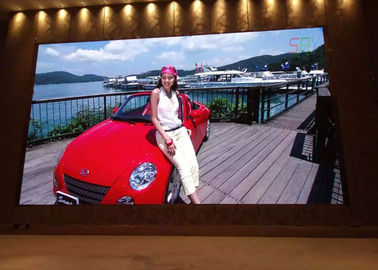

Product Images
