Product Details:
Payment & Shipping Terms:
|
| Product Name: | P2.5 Led Video Wall | Resolution: | 160000 Dots/sqm |
|---|---|---|---|
| Refresh Rate: | 2500HZ | Cabinet Size: | 640mm X 640mm |
| Module Size: | 160mm X 160mm | Show Content: | HD Video |
| High Light: | indoor LED video wall,indoor full color LED display |
||
P2.5 hanging LED Video Wall LED billboard display For Home Theatre
Description
P2.5 led video wall with 160000dots/sqm high resolution, its shows High definition pictures and video, can see clearly at 2meters short distance, it is a exactly perfect product for home theatre. It equals 4K Oled display, and has less hurt to audiences eyes.
(1) PH2.5mm is the small pixel pitch for indoor full color LED video display, which has high definition with big pixel density 160000dots/sqm and large pixels with good and clear image.
(2) Multiplied file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB etc. and also we have three display modes as VGA and DVI. There are also interfaces for Sound signal and video signal.
(3) 4096 grade grey control system and the color are over 4.4trillion.
(4) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(5) Line-Double technology is adopted for the picture adjustment.
(6) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
Feature
1, High resolution of indoor full color LED screen;
2, Integrated encapsulation is blessed with higher reliability;
3, Good color mixture from far or very near distance;
4, Good color consistency transparent picture;
5, Good picture uniformity;
6, Wide viewing angle;
7, Higher contrast ratio;
8, The most economical and rational solution for 3 in 1 full color technology.
Specification
|
Pixel Pitch |
2.5mm |
|
Pixel Density |
160000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/32 Scan |
|
Standard Cabinet Size |
640mm x 640mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
6KG |
|
Brightness |
1600 cd/sqm, adjustable by software |
|
Viewing Distance |
2m-25m |
|
Viewing Angle |
H: 140°; V:120° |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
400W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
Applications
It can be widely used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.

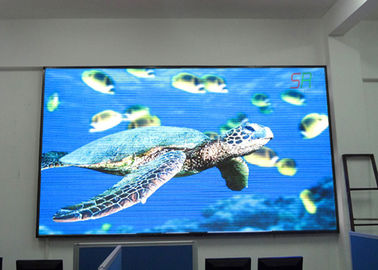

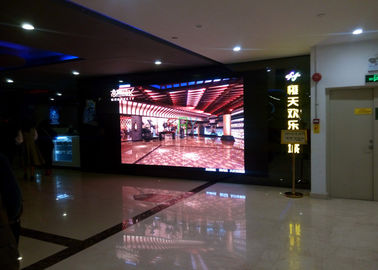

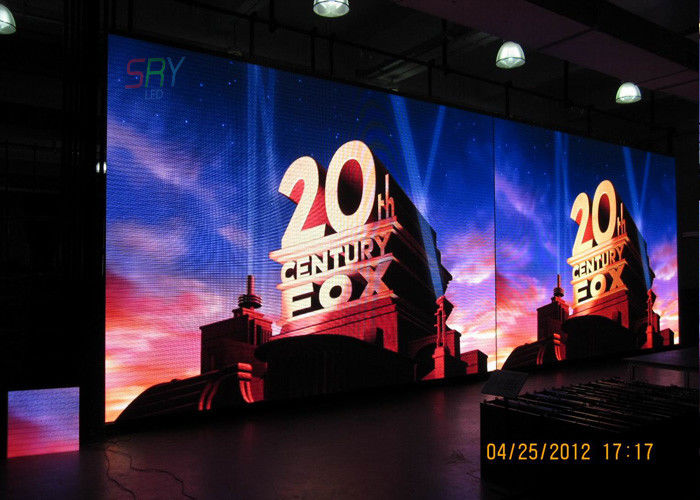

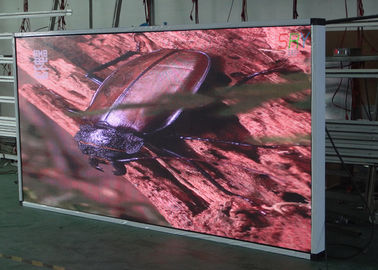

Product Images
