Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Resolution: | 10000dots/sqm |
|---|---|---|---|
| Working Temperature: | -20℃~+50℃ | Average Consumption: | 250W/sqm |
| Refresh Rate: | 1000Hz | Warranty: | 2 Years |
| High Light: | indoor LED video wall,indoor full color LED display |
||
1R1G1B P10 SMD 3 in 1 Indoor Fixed LED Display / Programmable full color LED display screen
Quick Detail:
1. 32 × 16 dots per LED module
2. 320 × 160 mm module size
3. SMD3528 LED type
4. 1/8 scan constant current
5. About 1.5 cm thick
6. JXI5020 drive IC
Factory Equipment:
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine, Solder Paste Printing Machine, Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium-speed Automatic SMT Machine, Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Competitive Advantage:
Professional Manufacturer of led display
1. OEM service,MOQ is 1sqm.
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Your reply will be replied within 24 hours.
6. Excellent R&D team,factory Price and assure you quality goods.
Specification:
|
Pixel Pitch |
10mm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Standard Cabinet Size |
960mm x 960mm |
|
Cabinet Weight |
35KG |
|
Brightness |
1100 cd/sqm |
|
Viewing Distance |
10m-100m |
|
Refresh Rate |
1000HZ, adjustable by software |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
650W/sqm |
|
Ave. Power Consumption |
200W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
Applications:
Mainly used in movie theaters, clubs, bars, stages, subway, airports, stations, gas stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, commercial buildings, meeting rooms

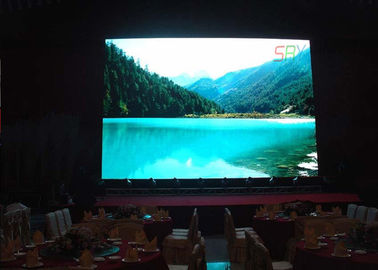

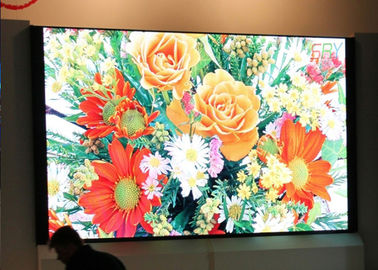

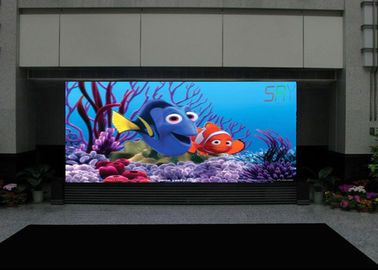

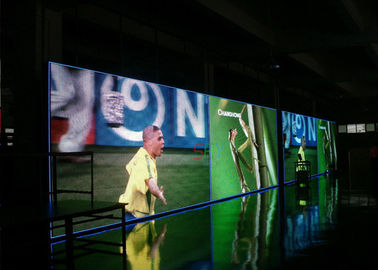

Product images:
