Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 7.62mm | Module Size: | 244mm X 244mm |
|---|---|---|---|
| Viewing Distance: | 7-80m | Control Way: | Synchronous, 3G, WIFI, USB |
| Drive Method: | 1/ 16 Scan | Warranty: | 2 Years |
| High Light: | indoor LED video wall,indoor full color LED display |
||
Dustproof SMD indoor LED display screen P7.62 With 7-80m Visual Distance
Quick Detail:
1. 17222 dots/sqm
2. 244 × 244 mm module size
3. SMD3528 LED type
4. 1/16 scan constant current
5. 1.5 cm thickness
6. JXI5020 drive IC
Feature:
1. Control software:Novastar / Linsn
2. LED Cabinet Size: 976mm x 976mm
3. Cabinet is maintenance from front side
4. LED Cabinet Material: Iron and aluminum
5, Cabinet Weight: 35kg/cabinet
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Advantages:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Specification:
|
Pixel Pitch |
7.62mm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
244mm x 244mm |
|
Standard Cabinet Size |
976mm x 976mm |
| Cabinet Type | Front Service/rear service |
|
Cabinet Weight |
45KG |
|
Brightness |
≥1000 cd/sqm |
|
Viewing Distance |
7m-80m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
200W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |

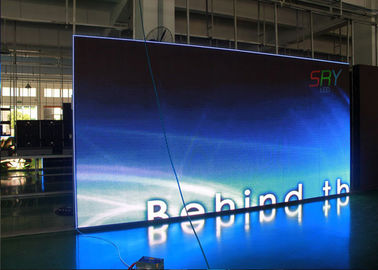

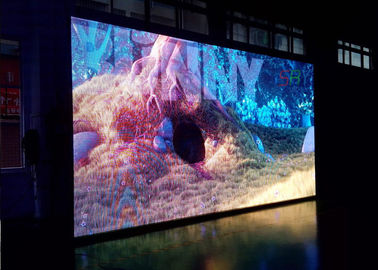

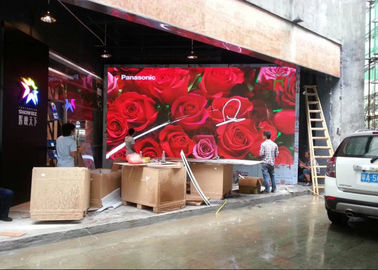

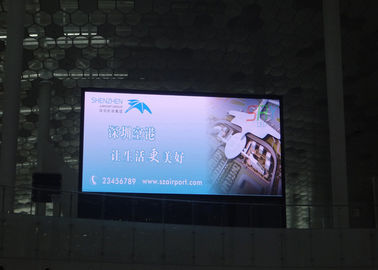

Product images:
