Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Confirguration: | RGB 3 In 1 | Led Chip: | SMD2121 |
| Drive Method: | 1/16 Scan Or 1/32 Scan | Brightness: | 1200cd/sqm |
| Display Source: | Video, Image, Message, Sheet | Control Way: | Wifi, 3G Or Synchronous |
| High Light: | indoor LED video wall,indoor full color LED display |
||
3mm Popular Portable Indoor Fixed LED Display Screen Poster Advertising , Iphone Shape
Description
1, Beautiful outside design, it looks like LCD Midea Player.
2, Multiple formarts. It can supports text, graphic, picture, animation and video.
3, Control Way, 3G/ WIFI/ Sychronous are available.
4, Live broadcast. It can support DVI,HDMI, 3G/HD/SC with SDI high definition display mode.
Features
1, Excellent flatness, neighbouing module gap less than 0.1mm.
2, High contrast, 4000:1.
3, Easy installation, with fast locks, power and data plugs.
4, Lacquer coating, protect PCB and relevent components.
5, High resolution, 111111dots/sqm.
6, Short viewing distance, can be seen at 1- 2 meters short distance.
Application
Gas Stations, Fitness Room, Metro Station, Movie Theaters, KTVs, Clubs, Hospitals, Airport etc.
Specification
|
Pixel Pitch |
3mm |
|
Pixel Density |
111111dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
64dots x 64dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
1920mm x 768mm |
|
Cabinet Weight |
75KG |
|
Brightness |
≥1800 cd/sqm |
|
Viewing Distance |
3m-30m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |

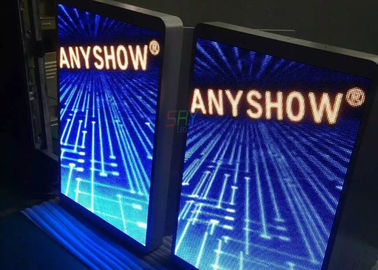

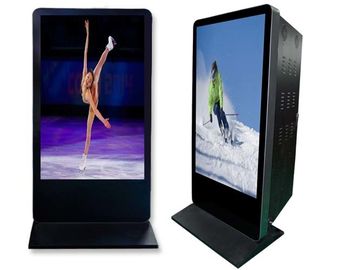

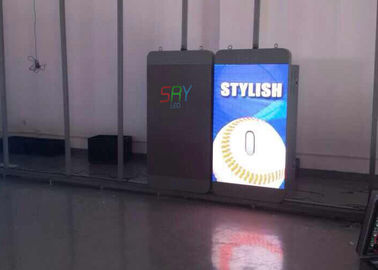

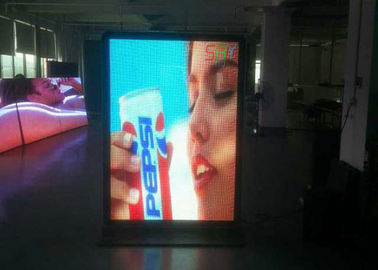

Product Images
