Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Brightness: | 1800cd/sqm | Led Chip: | SMD3528 |
| Led Color: | White | Viewing Distance: | 5-50m |
| Life Span: | 100,000hours | Warranty: | 2 Years |
| High Light: | indoor LED video wall,indoor full color LED display |
||
P5 Full Color IP43 SMD indoor LED video wall 1800CD Brightness Automatically
Feature:
1. Cabinet Can Be Front or Rear Maintenance
2. LED Chip: SMD3528 white leds
3. LED Module Size: 320*160*17mm
4. LED Cabinet Size: 640*640mm or 960mm*960mm
5. Control Software:Novastar / Linsn / Colorlight / Xixun
6, Cabinet Material: Iron, Aluminum, Die casting aluminum, die casting magnesium
Description:
1, High resolution: P5 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution.
2, P5 SMD3528 LED screen is of large viewsing angle at 140 degree horizontally and vertically.
3, Seamless connection: Indoor full color LED screens cabinet surface is uniform.
4, Ultra slim: P5 full color indoor LED display is designed at 95mm thickness for convenient installation when space is limited.
5, High refresh frequency: This ensure P5 rental LED screens suitable for rental projects with Live broadcast,without water wave and shake.
6, P5 indoor full color LED Display is utilizing full black color LED chips to reach pure and true color effect.
Competitive Advantage:
1, P5 indoor fixed led display uniform in brightness and color.
2, Full color P5 indoor fixed led display is utilizing full black color LED chips.
3, Indoor fixed led display contrast ratio up to 4000:1 to react real color of the content.
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade.
5, Large viewing angle at 140 degree horizontal and vertical.
6, P5 indoor fixed led display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use.
Specification:
|
Pixel Pitch |
5mm |
|
Pixel Density |
40000dots/sqm |
|
Color Configuration |
1R1G1B |
|
Module Size |
320mm x 160mm |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
640mm x 640mm |
|
Viewing Distance |
5m-50m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
Applications:
Movie theaters, clubs, bars, stages, subway, airports, stations, gas stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, commercial buildings, meeting rooms

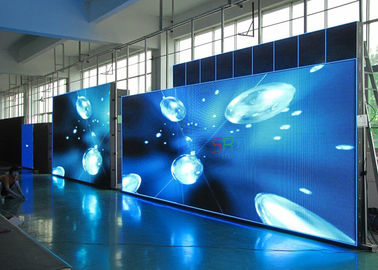

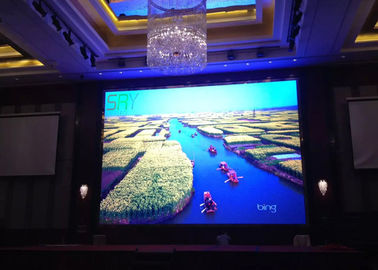

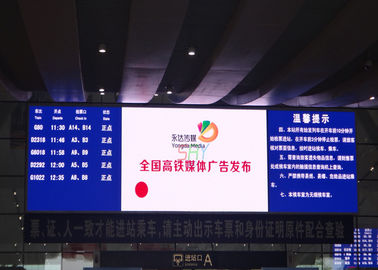

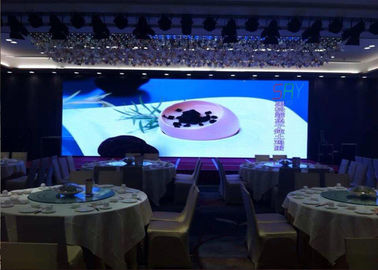

Product images:
