Product Details:
Payment & Shipping Terms:
|
| Name: | NOVA Sending Card | Connection: | Synchronous With PC |
|---|---|---|---|
| Input Source: | DVI, S-video, RGB, VGA | Support Pixel: | 1280×1024, 1024×1200, 1600×848, 1920×712 |
| High Light: | LED display Sending Card,led screen video processor |
||

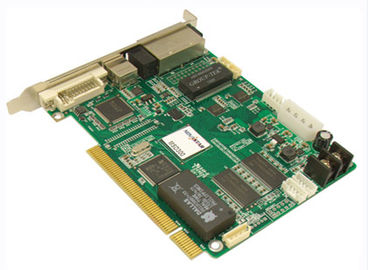

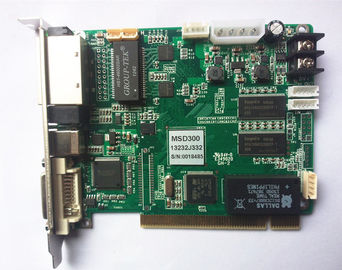

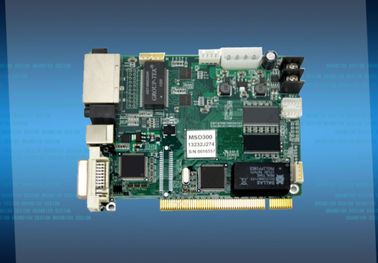

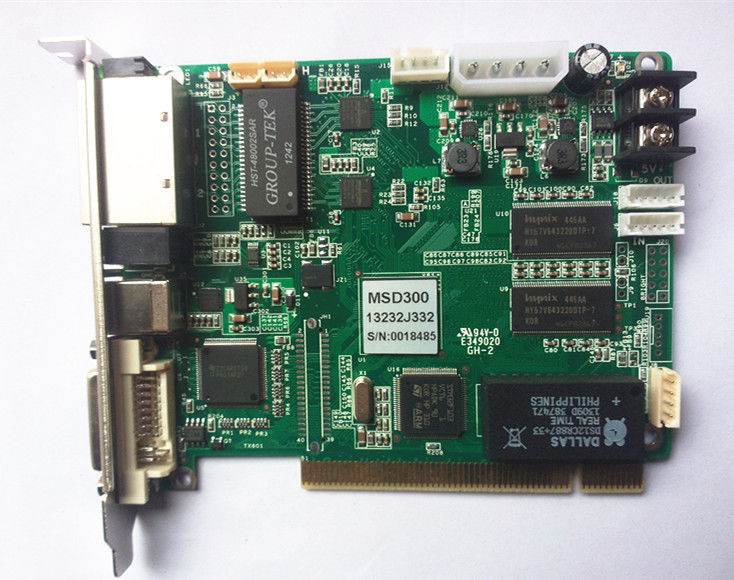

Novastar Control Card LED display Sending Card MSD300 1280 x 1024 pixels
Quick Detail
Product Type :Sending card
Input Resolution :1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668(width and height can be specially defined by customers)
Capacity :1.3 million pixels
Supply Voltage :5-12V
Control Method :USB Interface
Video Interface :DVI
Audio Interface :3.5mm
Viedo Format :RGB
Output Interface :2 Ethernet ports
Bit Depth Of Video Resource :8bit
Light Sensor Interface :1
1) 1 DVI video input;
2) 1 audio input;
3) 2 Ethernet port outputs;
4) USB control interface which is able to be cascaded for uniform control;
5) Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
6) 1 light sensor interface.
Specification
