Product Details:
Payment & Shipping Terms:
|
| Name: | NOVA Receiving Card | Connection: | Synchronous With PC |
|---|---|---|---|
| Input Source: | DVI, S-video, RGB, VGA | ||
| High Light: | LED display Sending Card,led screen video processor |
||

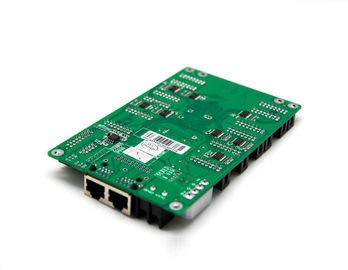

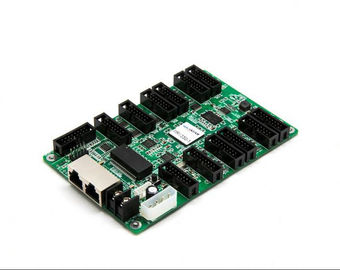

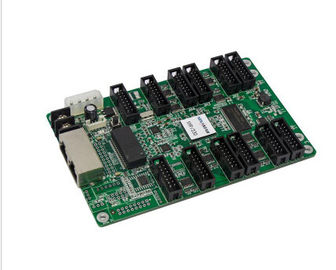

LED Receiving Card NOVA MRV330 Full Color LED Display Synchronous Control System CE-EMC Standard
MRV330 is the 24-group data receiving Card of Nova M3 series which is without HUB.
Resolution: 256 x 226
RGB Data Output :24 groups
Monitoring Card Applicable
Support Memory on Module
HUB75 Interface :Integrated
Certification:CE,ROHS
1) Integrated 12 standard HUB75 connectors and without the HUB structure
2) Single card outputs 24-group of RGB data;
3) Single card supports resolution of 256x226;
4) Configuration file readback;
5) Temperature monitoring;
6) Ethernet cable communication status detection;
7) Power supply voltage detection;
8) High gray scale and high refresh rate;
9) Pixel-by-pixel brightness and chromaticity calibration. Brightness and chromaticity calibration coefficients for each LED;
10) Pre-store picture setting;
11) Monitor card connection;
12) Comply with EU RoHs standard;
13) Comply with EU CE-EMC standard.
