| Input Voltage: | AC 110V - 220V ± 15% | Application Model: | Indoor And Outdoor |
|---|---|---|---|
| Weight: | 5kg | Warranty: | 2 Full Years |
| High Light: | LED display Sending Card,led screen video processor |
||
KYSATR KS600 HD LED Display Video Processor Support 1024 x 768dots 1920 x 1200dots
Specification:
| Video Input Signal | Port | Descriptions |
| DVI-D (24+1) | 1 |
Maximum supported resolution of 1920×1200@60HZ,downwad compatibility Be compliant with HDMI1.3 and inferior version,EDID version 1.3 |
| HDMI (Type A) | 1 |
Maximum supported resolution of 1920×1200@60HZ,downwad compatibility Be compliant with HDMI1.3 and inferior version,EDID version 1.3 |
| VGA (HD-15) | 1 |
Maximum supported resolution of 1920×1200@60HZ,downwad compatibility Be compliant with HDMI1.3 and inferior version,EDID version 1.3 Signal Level:RGB,Hsync,Vsync:0 to 1 Vpp±3dB (0.7V Video+0.3V Sync) 75Ω,Black Level:300mV Sync-tip:0V |
| BNC | 2 |
NTSC/PAL Automatically Adjust Signal Level:1VPP±3db (0.7 V Video+0.3V Sync 75Ω |
| Video Signal Output | ||
| DVI-D (24+1) | 2 |
Maximum supported resolution of 1920×1200@60HZ,downwad compatibility Be compliant with HDMI1.3 and inferior version,EDID version 1.3 Supported User-defined Resolution:for example 1536×1536@60hz,1200×1800@60hz |
| Control Connection Port | ||
| RS232 (RJ11) | 1 |
Baud Rate:9600 RJ11 to RS232 Connection Cable |
| Features | ||
| Fade-in Fade-out | Support | |
| Humanized UI | KS600 is equipped with color lcd display,digital keyboards and adjusting knob,and supports guide settings | |
| Scheduled Task | Users can preset the equipment to auto-perform the specified operation at a certain time. | |
| Others | ||
| PC Control | RS232/USB | Size:66H×432L×225W(mm) |
| Weight | 3.5kgs | Input Voltage:100-240V AC,47-63HZ,≤2A |
| Working Environment | 0-40,0-95% humidity | Warranty:2 Years |

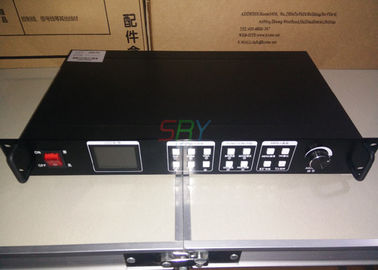

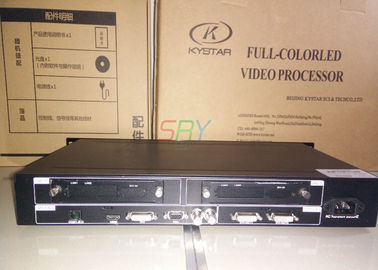

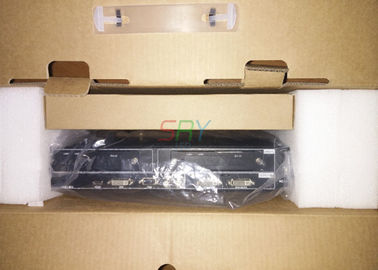

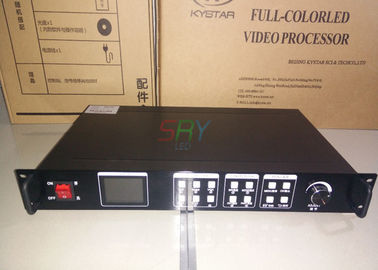

Video Processor Picture:
