Resolution: | 40000 Dots/sqm | Module Size: | 320mm X 160mm |
---|---|---|---|
Led Type: | SMD2727 | Brightness: | 6500cd/sqm |
Power Supply: | G-energy | Cabinet Size: | 960mm X 960mm |
High Light: | LED advertising billboards,LED digital billboards |
Digital Outdoor LED Billboard , Stage Background Multimedia thin LED display
Description

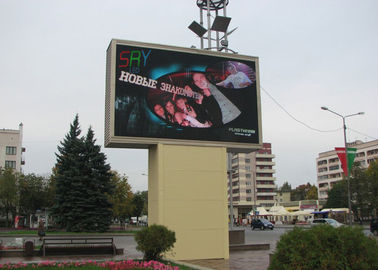

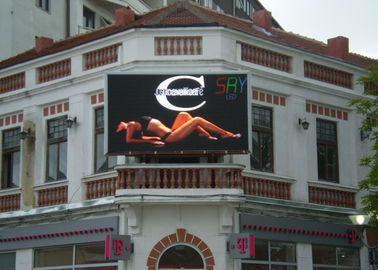

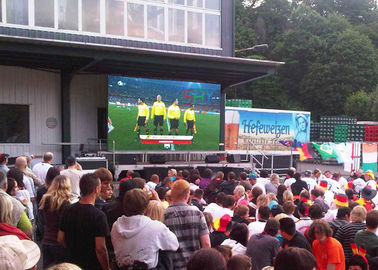

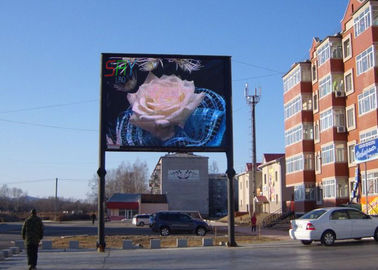

1). Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .
2). High brightness:6500cd/m2 Automatic or manual adjustment of the brightness of the display.
3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4). Clear vivid image quality: Throughout the show, the picture clear, bright color.
5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.
6).The list of available Models of our outdoor full color led display board : Outdoor led display screen:P5,P6,P8,P10,P12,P16,P20,P25.
7).Good heat dissipation;
8).Energy-saving to reduce cost;Environment friendly;
9).Cabinets Seamless splice;
10).Comprehensive Application
Advantage
1. Good color blending: Display clear, exquisite, nature color video even at close distance;
2. Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3. Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
4. Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
5. Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures (BMP/JPG/GIF/PCX…..) and video (MPG/MPEG/MPV/MPA/AVE/VCD/SWF/RM/RA/RMJ/ASF)
Specification
Pixel Pitch |
5mm |
Pixel Density |
40000dots/sqm |
Color Configuration |
1R1G1B |
LED Package |
SMD2727 |
Module Size |
320mm x 160mm |
Module Resolution |
64dots x 32dots |
Drive Mode |
1/8 Scan |
Standard Cabinet Size |
960mm x 960mm |
Cabinet Weight |
45KG |
Brightness |
≥6500 cd/sqm |
Viewing Distance |
5m-50m |
Viewing Angle |
H: 140°; V:140° |
Refresh Rate |
2000HZ, adjustable by software |
Frame Rate |
120frame/s |
Grey Scale |
16.7M colors(Synchronized) |
Color Temperature |
R.G.B brightness 256 level adjustable |
Power Input |
AC110V/ 220V ±10%, 50HZ |
Max Power Consumption |
800W/sqm |
Ave. Power Consumption |
300W/sqm |
Storage Temperature |
-30℃~+70℃ |
Working Temperature |
-20℃~+50℃ |
Blind Spot Rate |
<1/10000 |
MTBF |
>10,000 Hours |
Life Span |
>100,000 Hours |
Waterproof Level |
IP65 |
Operating Humidity |
10%~90% RH |
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate |
CE, RoHS |
Product Images
