Product Details:
Payment & Shipping Terms:
|
| Resolution: | 40000 Dots/sqm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Led Type: | SMD2727 | Brightness: | 6500cd/sqm |
| Power Supply: | G-energy | Cabinet Size: | 960mm X 960mm |
| High Light: | LED advertising billboards,LED digital billboards |
||
Advertising Waterproof SMD2727 electronic display boards 5mm Outdoor Cabinet
Description
1). Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .
2). High brightness:6500cd/m2 Automatic or manual adjustment of the brightness of the display.
3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4). Clear vivid image quality: Throughout the show, the picture clear, bright color.
5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.
6).The list of available Models of our outdoor full color led display board : Outdoor led display screen:P5,P6,P8,P10,P12,P16,P20,P25.
Features
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof capability;
9. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.
Specification
Pixel Pitch | 5mm |
Pixel Density | 40000dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2727 |
Module Size | 320mm x 160mm |
Module Resolution | 64dots x 32dots |
Drive Mode | 1/8 Scan |
Standard Cabinet Size | 960mm x 960mm |
Cabinet Weight | 45KG |
Brightness | ≥6500 cd/sqm |
Viewing Distance | 5m-50m |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP65 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Operating System | Win 98, Win2000, XP, Win7, Win8, Win10 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |

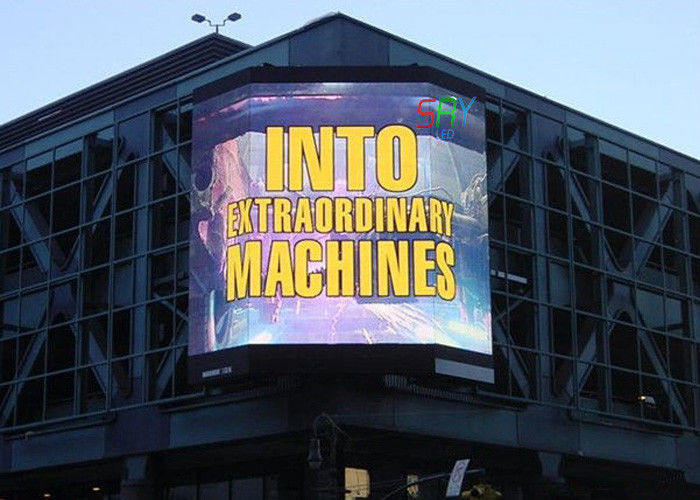

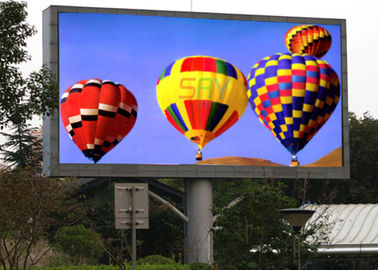

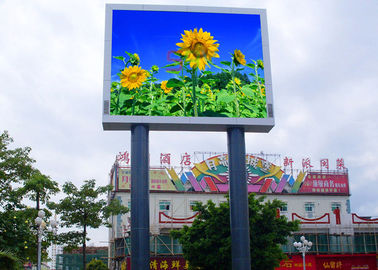

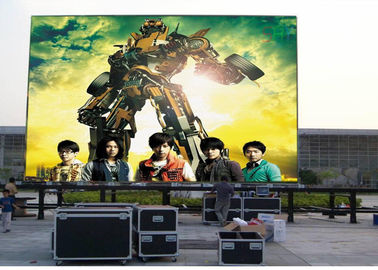

Product Images
Why Choose us
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
2. Experienced&Professional:
9 years manufacturing experience on LED displays, professional workmanship & design.
3. Best raw materials:
High quality,high brightness and long life span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before packing , make sure our quality before delivery.
6. Quality gurantee:
Life span of LED display screens is more than 100,000 hours
7. Prompt &Professional service :
Any inquires will be replied within 24 hours in working days and you’ll get helpful suggestions from us.
