Product Details:
Payment & Shipping Terms:
|
| Name: | Truck Mounted Led Screen | Pixel Pitch: | 8mm |
|---|---|---|---|
| Led Type: | 1R1G1B 3in1 | Leds Brand: | Nationstar |
| Application: | Truck, Trailer | Module Resolution: | 32dots X 16dots |
| High Light: | truck mounted led display,led truck advertising |
||
High Flatness Truck Mounted LED Display Screen PH8mm Sharp Image Energy Saving
Advantages:
1. Light weight and slim design, 12.8kg/cabinet, cabinet size is 768*768mm
2. Quick and easy, 10 seconds for assembling 2 cabinets without any tools
3. Die casting aluminum cabinet design, saves 40% steel structure
4. Hollow design, wind resistant and great heat dissipation
5. Outdoor and indoor cabinets and modules are compatible with each other
6. Easy maintenance, front and rear maintenance are available
7. Widely application area, such as main screen, side screen, floor screen curved screen
8. Floor screen can bear 1 ton of weight and IP 65 protection level
9. Energy saving and environmental friendly
10. Capability to control the gap between cabinets
11. High flatness
12. Less cable connection, more stable
Description
1. Chassis dimension length/width/height (mm): 6970×2240×2450 mm
2. Engine Manufacturer: Guangxi Yuchai Engine group
3. Hydraulic pump which can lift the screen up for 1.8m
4. Chassis model: CDW5040XXY
5. Wheelbase (mm): 3360mm
6. Tire specification: 8.25-16 nylon tire (6 units)
7. Fuel type: Diesel
8. Engine: YC4D130-41 (Turbo Diesel)
9. Exhaust/ Power (ml/kw): 4200ml/96kw
10. Engine: OM15CY (OUMA)
Rated power: 15/15KVA
HZ:50 HZ
Rated voltage:230V
Rated current:65.2A
PF:1.0
Rated rotate speed:1500r/min
Phase:Single
Weight: 480kgs
11. Screen Pixel: 8mm
Screen size: 3.072 x 2.048 m
12. Four hydraulic legs
13. At the top of the compartment, equipped one cooling exhaust fan,220V
14. Waterproof audio equipment (four units)
Specification
|
Pixel Pitch |
8mm |
|
Pixel Density |
15,625dots/sqm |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Package |
SMD3535 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
6,500cd/sqm |
|
Viewing Distance |
8m - 80m |
|
Viewing Angle |
H: 120°; V120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
850W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃ - +85℃ |
|
Working Temperature |
-20℃ - +65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10% - 95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
1. Trucks,dump trucks and tipper trucks
Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement
tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck;
wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2. Special-purpose vehicles
Trailer; various semi trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi container trailers;
goose low bed trailers; fuel tank trailers.

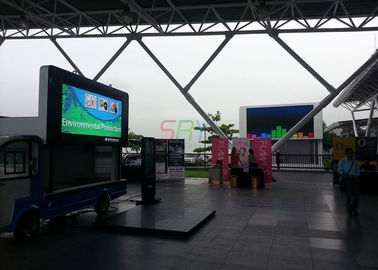

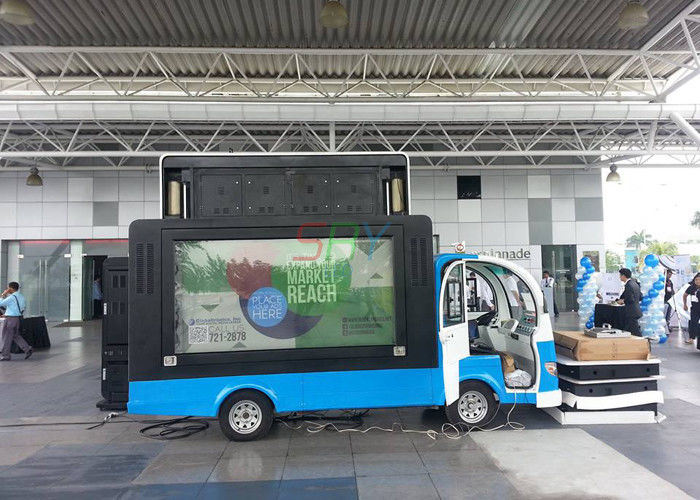

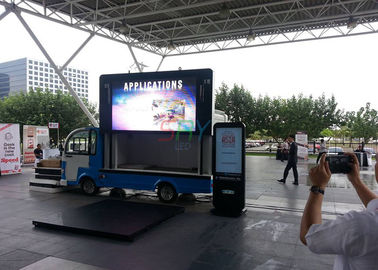

Product Images
