Product Details:
Payment & Shipping Terms:
|
| Color: | Red, Yellow, Green, Blue, White | Size: | 12 Inch |
|---|---|---|---|
| Display Content: | Number | Net Weight: | 12KG |
| Control Way: | RF Remote | ||
| High Light: | LED information display,programmable led display |
||

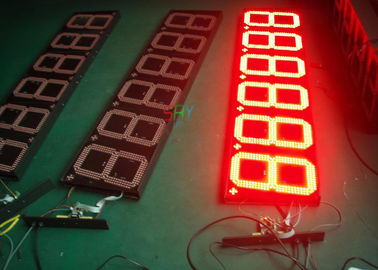

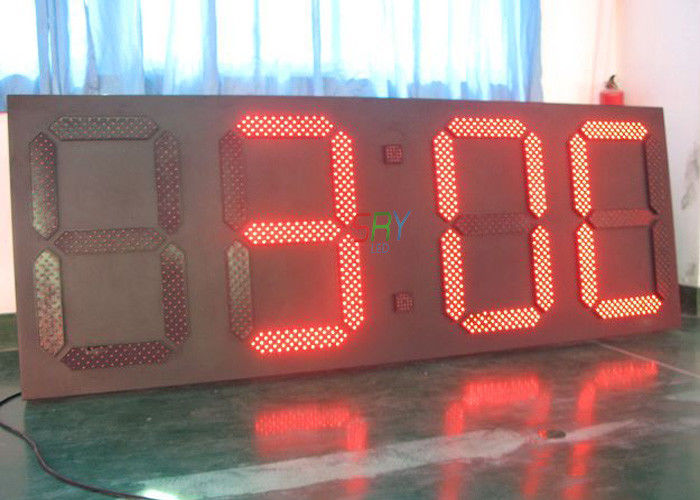

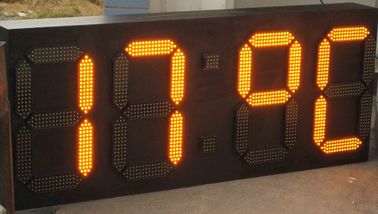

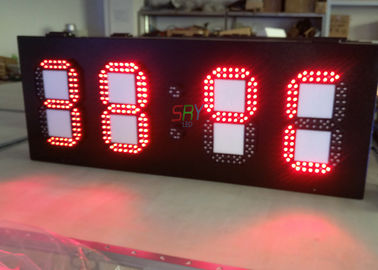

Waterproof Red Yellow Green Blue LED Moving Message Display Changeable With Remote Control
| Optional Color | Red, Green,Yellow, Pure White, Blue |
| Digit height | 6",8",10",12",16",18",20",24" etc |
| Brightness control | auto dimming or handmade dimming |
| Brightness level | 8 level |
| View angle | 120° for standard |
| Service Access | Front or back service |
| Master/Slave | single/double side; master /slave available |
| Cabinet material | iron cabinet, aluminum cabinet |
| Waterproof rating | IP65 for outdoor product |
| Output Port | 485 driver signal/595 drive signal |
| Working voltage | 12V DC |
| Input Voltage | 110V-230V AC 50/60HZ |
| RF remote distance | ≤100m |
| Operating environment | -30°c to 75°c; 5% to 95% RH |
| Communication Interface | RS232/RS485/TCP/IP |
| Control Method | RF remote, PC, LED remote, LCD remote |
| Installation method | Hang, mount on wall by hook or iron angle, or custom by customer |
| Standard Parts | RF remote, receiving antenna, light sensor, cooling fan, installation parts |
| Place of Origin | Longgang distric, Shenzhen city, P.R.China |
| Driver Pameters | |
| Drive port | One digit |
| Operating voltage | 12V DC |
| Max. current | 2A*8=16A |
| Drive Signal | RS485 |
Description:
1. Control system: Gteak 12 inch 7 segment led display
2. Indoor or outdoor brightness available.
3. Display format: 88:88 or 88:88:88 or customized
4. Time display: Year(Y), Date (D),Time (T)
5. Temperature display: Celsius (C), Fahrenheit (F)
6. Set the time for turn ON/OFF display freely
7. Set brightness on/off/level freely
8. Different sizes and colors are available that fit your flexible needs and wants.
9. A finished cabinet makes installation trouble-free with no additional fabrication needed.
10. Customized face designs.
11. High intensity LEDs allow for us to manufacture a more efficient display.
12. Automatic nighttime dimming capability with built-in light sensor
13. GPS module for time adjusting (optional)
14.Control method: by RF remote, by LCD remote, LED remote, standard software or customer software
