Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Cabinet Size: | 960mm X 960mm | Control System: | Linsn |
| Best Viewing Distance: | 5m - 50m | Warranty: | 2 Full Years |
| High Light: | truck mounted led display,led truck advertising |
||
Full Color 2000HZ 1 / 8 Scan Truck Mounted LED Display Signs 1R1G1B High Definition
Specification:
|
Pixel Pitch |
5mm |
|
Pixel Density |
40,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2727 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
64dots x 32dots |
|
Cabinet Size |
960mm x 960mm |
|
Cabinet Resolution |
192dots x 192dots |
|
Drive Duty |
1/8 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
5m - 50m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
| Waterproof | IP65 |
|
Cabinet Weight |
45kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Decription:
1. Energy saving and environmental friendly
2. Capability to control the gap between cabinets
3. Easy maintenance, front and rear maintenance are available
5. Floor screen can bear 1 ton of weight and IP 65 protection level
6. Widely application area, such as main screen, side screen, floor screen curved screen
1. 4. Hollow design, wind resistant and great heat dissipation
2. Die casting aluminum cabinet design, saves 40% steel structure
3. Quick and easy, 10 seconds for assembling 2 cabinets without any tools
4. Light weight and slim design, 45kg/cabinet, cabinet size is 960mm x 960mm
5. Outdoor and indoor cabinets and modules are compatible with each other
Application:

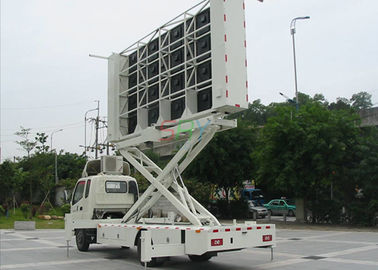

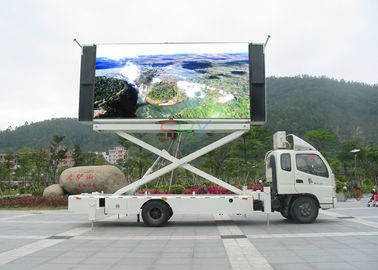

Vehicle, truck, trailer, pickup car and etc mounted use for advertising
Related Application:
Competitive Advantages:
1. Low power consumption
2. Seamless splice design
3. Super slim cabinet design
4. Super light cabinet design
