Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 12mm | LED Encapsulation: | DIP346 |
|---|---|---|---|
| Module Size: | 192mm X 192mm | Drive Duty: | 1/4scan |
| Module Weight: | 0.75kg | Waterproof: | IP65 |
| Brightness: | 7,500cd/sqm | Warranty: | 2 Full Years |
| High Light: | LED advertising billboards,LED digital billboards |
||
7500nits Outdoor 1/4scan P12 Waterproof IP65 Full Color Advertising LED Billboard
Decription:
1. Pixel Pitch: 12mm
2. Color Configuration: 1R1G1B
3. LED Encapsulation: DIP346
4. Module Size: 192mm 192mm
5. Cabinet Size: 960mm x 960mm
6. Cabinet Material: Stainless Steel
2. Best viewing distance: 12m - 120m
3. Best viewing angle: H: 120°; V: 70°
4. High refresh rate: 2,000HZ
Specificition:
|
Pixel Pitch |
12mm |
|
Pixel Density |
6,944dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
DIP346 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
16dots x 16dots |
|
Drive Duty |
1/4scan |
|
Brightness |
>7,500nits |
|
Viewing Distance |
12m - 120m |
|
Viewing Angle |
H: 120°; V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Stadium, supermarket, playground, cinema, express way, gas station, chain store, church and etx outside advertising display screen use

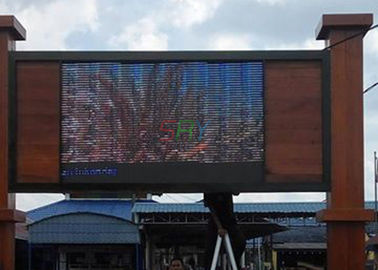

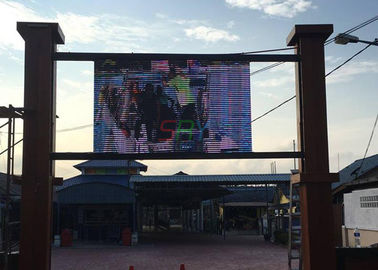

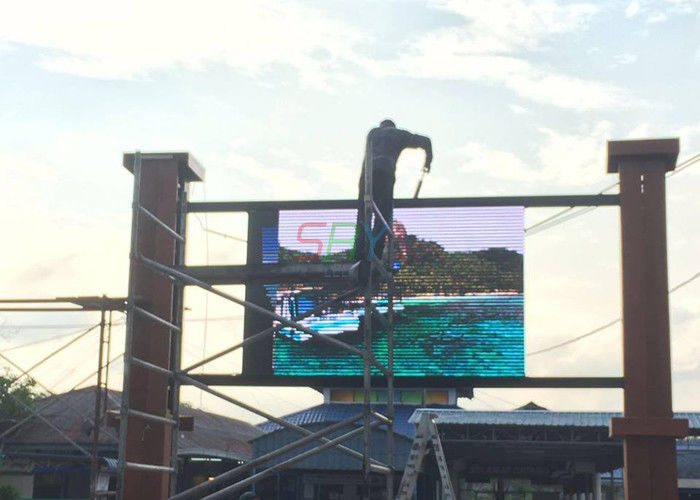

Related Pictures:
Competitive Advantages:
1. Convenient Maintenance Operations:
Disassembling modules without opening back cover.
2. Multivariate Structural Design:
The cabinets can be installed by ground stacking insallation,column installation,hanging insallation and other insallation,and can also be curved switching to meet the various needs of clients effect.
3. Reliable Protection Class:
Cabinet's protection grade in front sides and real sides all reach IP65,certified through SGS third party.Screen can be used in wind,rain and snow weather.
4. Stable Performance:
Internal connection within cabinet is simple,HUB card and modules use copper-plated pin directly connected.As we all know,the fewer components used in electronic products,the lower failure rate.Compared to traditional cable connection,I-Magic work more stable and reliable.
5. Extremely High Accuracy
Use of aluminum structure for the cabinets,one-time die-casting,creating exquisite work,the flatness of the entire screen when assembing is very high,and the gap between cabinets is less than 0.3mm,can't be detected by naked eyes,outstanding display effect.
