Energy saving 1R1G1B SMD3535 outdoor led panel / P8 LED Display Billboard

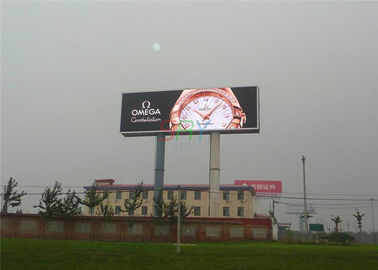

Large Image : Energy saving 1R1G1B SMD3535 outdoor led panel / P8 LED Display Billboard

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - OFS - P8

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 750 - 850 / Square Meter
Packaging Details:	Wooden Case (case size based on cabinet size and quantity)
Delivery Time:	10-12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	8mm	LED Encapsulation:	SMD3535
Module Size:	256mm X 128mm	Brightness:	6,500nits
Waterproof:	IP65	MTBF:	10,000hrs
Lifespan:	100,000hrs	Warranty:	2 Full Years
High Light:	LED advertising billboards , LED digital billboards

Energy-saving 1R1G1B Waterproof SMD3535 Outdoor LED Screens P8 LED Display Billboard

Decription:

Energy-saving 1R1G1B Waterproof SMD3535 Outdoor LED Screens P8 LED Display Billboard,

brightness is higher than 6,500nits. Best viewing distance is 8m - 80m. Max power consumption is 800W/sqm. To sum up this kind P8 sells very well in LED displays area. It is the best seller among all LED displays.

Features:

Thin: It is die-casting aluminum cabinet, thus it is featured by high strength, toughness, precision and it is hard to be deformed. The edge is just 33mm comparing to the 160mm of common cabinet.

Fast: There is fast locking device in four corners. It takes only 10 seconds to assemble one cabinet by pushing the handle 90 degree. It is fast and precise assembling.

Easy: The cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled(replaced).

Compatible: New structure design satisfies hoisting and ground-support assembling. P4, P5.33, P6.4, P10.66, P12.8 and P16 are compatible.

Low: Excellent heat dissipation design, no fans and air conditioning are required. Low noise, light weight, low cost for transportation and assembling without tools with low cost for assembling.

Specificition:

Pixel Pitch	8mm
Pixel Density	15,625dots/sqm
Color Configuration	1R1G1B
LED Encapsulation	SMD3535
Module Size	256mm x 128mm
Module Resolution	16dots x 8dots
Drive Duty	1/4scan Constant Current
Brightness	>6,500nits
Viewing Distance	8m - 80m
Viewing Angle	H: 120°; V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	AC110V/ 220V/ 50HZ
Max Power Consumption	800W/sqm
Ave. Power Consumption	300W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
