Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | DC 12V | Warranty: | 2 Full Years |
|---|---|---|---|
| Cabinet Material: | Aluminum | Lifespan: | 100,000hours |
| High Light: | taxi top LED display,taxi roof LED display |
||

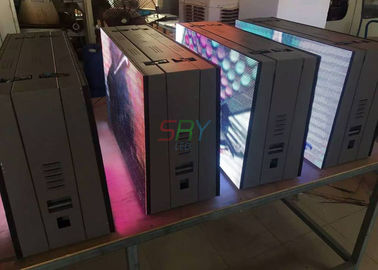

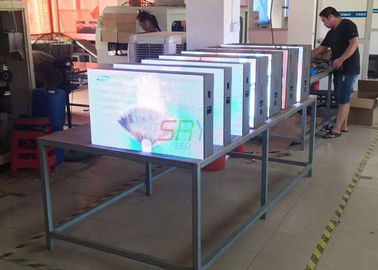

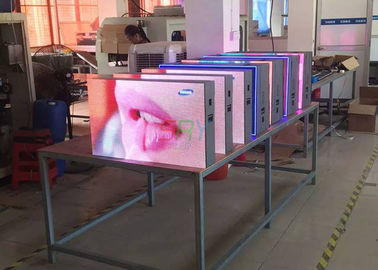

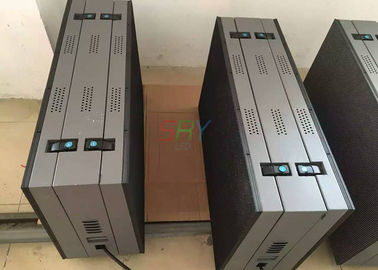

192 x 64dots Moving Custom Made Taxi LED Display / 4g Control Taxi LED SCREEN
Quick Information
1. Pixel Pitch: 5mm
2. Color Configuration: 1R1G1B 3in1
3. LED Encapsulation: SMD2727
4. Module Size: 320mm x 160mm
5. Cabinet Size: 960mm x 320mm
6. Cabinet Material: Aluminum
7. 3G / WIFI control;
8. 960 × 320 mm screen size;
9. 1070 × 180 × 408 mm cabinet dimension;
10. Taxi status at front;
11. Taxi number at the back;
12. LEDEditor_V9 software.
Features
4. long viewing distance
5. wide viewing angle
Specifications
| Item | Unit | Parameter |
| Pixels(Pixel Pitch) | mm | 5mm |
| Pixel Density | dots/sqm | 10,000dots/sqm |
| Color Configuration | 1R1G1B 3in1 | |
| LED Encapsulation | SMD2727 | |
| Drive Duty | scan | 1/8scan |
| Cabinet Resolution | dots | 192dots x 64dots |
| Cabinet Size | mm | 960mm x 320mm |
| Cabinet Weight | kg | ≈15kg |
| Brightness | nits | >6,500nits |
| Best Viewing Distance | m | 5m - 50m |
| Best Viewing Angle | ° | H:120 °, V: 120° |
| Lifespan | hours | >100,000hours |
| MTBF | hours | >10,000hours |
| Working Temperature | Celsius | -20Celsius - +60Celsius |
| Working Humidity | 10% - 95%RH | |
| Warranty | 2 Full Years | |
| Certificate | CE, LVD, RoHS |
1. High brightness meet the needs of various application environments.
2. Energy saveing design and good performance in color uniformity.
3. Superb workmanship to ensure every processing details.
4. Environmental raw material (LED chips, mask, glue, and steel cabinets).
5. Large viewing angle. Horizontal: 120 ° , Vertical: 120°.
