Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | DC 12V | Warranty: | 2 Full Years |
|---|---|---|---|
| Cabinet Material: | Aluminum | Lifespan: | 100,000hours |
| High Light: | taxi top LED display,taxi roof LED display |
||

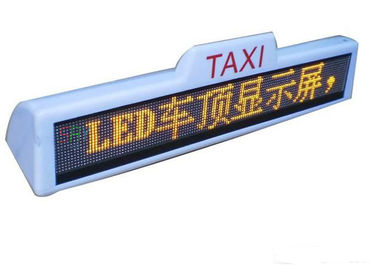

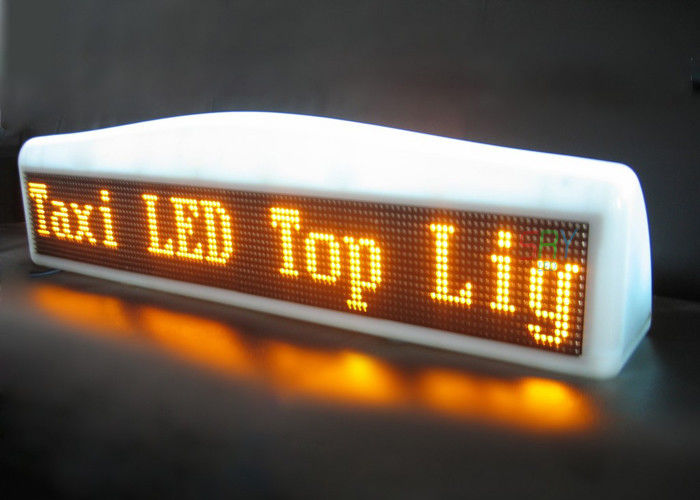

IP65 Asynchronous Taxi Top LED Display Wireless Taxi LED Top HD Light Display Sign
Quick Information
1. Energy-saving and eco-friendly
2. Support remote control for select program and adjust brightness
3. High reliability. 24h/7day advertising all the time and all weather conditions
4, Non-stop Splendidness anywhere anytime.One server serves multiple vehicles and screens
5. The screen is anti-moisture, anti-dust and anti-corrosion, which makes the total IP rating reach IP65.
Features
1. It has a long lifetime of 100,000 hours;
2. Color temperature 3200-9300 k adjustable;
3. Less than 50LB (22kg) each set, ultra-thin and lightweight design;
4. It can work under -40F–140F (-40-60℃) /5%-95%RH(non-condensing);
5. Supporting text, graphics, video or flash, more choice than traditional taxi top backlit advertising, which needs printing and only showing one ads one time;
6. DC9-36V large-scale input voltage. Horizontal and vertical 120-degree plus larger viewing angle than taxi LCD screens;
Specifications
| Item | Unit | Parameter |
| Pixels(Pixel Pitch) | mm | 5mm |
| Pixel Density | dots/sqm | 10,000dots/sqm |
| Color Configuration | 1R1G1B 3in1 | |
| LED Encapsulation | SMD2727 | |
| Drive Duty | scan | 1/8scan |
| Cabinet Resolution | dots | 192dots x 64dots |
| Cabinet Size | mm | 960mm x 320mm |
| Cabinet Weight | kg | ≈15kg |
| Brightness | nits | >6,500nits |
| Best Viewing Distance | m | 5m - 50m |
| Best Viewing Angle | ° | H:120 °, V: 120° |
| Lifespan | hours | >100,000hours |
| MTBF | hours | >10,000hours |
| Working Temperature | Celsius | -20Celsius - +60Celsius |
| Working Humidity | 10% - 95%RH | |
| Warranty | 2 Full Years | |
| Certificate | CE, LVD, RoHS |
Our Advantages
1. 2 years quality warranty, maintenance for whole life time.
2. 1% spare parts for free.We will provide some modules and some meterials such as cable,LED lamp,IC ect. for free parts to repair if there is something wrong with it during this period.
3. Free training:You could send your staff who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair,or we take video about the operate and repair way to user; provide remote assistance and CAD drawing.
4. Technical support:
a. If you need our engineer to guide led display installation, we can arrange this.
b. Our engineer can help you to set up led display once you don't know how to operate led display.
