Product Details:
Payment & Shipping Terms:
|
| Resolution: | 111111 Dots/sqm | Size: | 192mm X 192mm |
|---|---|---|---|
| Interface: | HUB75 | Module Weight: | 0.2KG/pcs |
| Thickness: | 15mm | Led Type: | SMD2121 |
1/ 32 Scan P3 SMD Indoor Full Color Rental Hanging LED Module 32 X 32 Pixels
Description
1. Wide view angle
With 120/120degree view angle ,bring a wonderful image
2. High definition guarantee excellent performance
3. Black LED and light absorbing mask patent increase the display effect
4. Light Weight , thin and intensive design offers more space to be creative
5. Information source can be camera, video, VCD, DVD, LD, TV and so on; Clear picture without flicker and distortion
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle
Specification
|
Pixel Pitch |
3mm |
|
Pixel Density |
111111dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
| Module Thickness | 15mm |
|
Module Size |
192mm x 192mm |
|
Standard Cabinet Size |
576mm x 576mm |
| Cabinet Weight | 8KG |
| Drive IC | JXI or Chipone |
|
Brightness |
≥2000 cd/sqm |
|
Viewing Angle |
H: 140°; V:140° |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
300W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
FAQ
1.What is the payment method?
We support a variety of payment methods, the most common is the TT, besides, Paypal and West Union are also okay.
2.Can it play HD video?
Yes, it can realize HD video function with video processor.
3.What's the controlling system?
Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
4.What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
5. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.

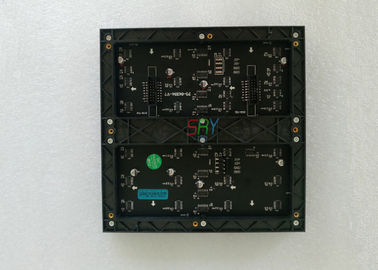

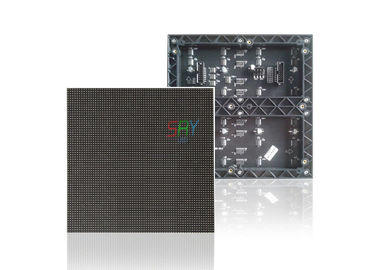

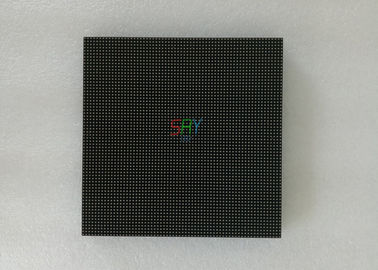

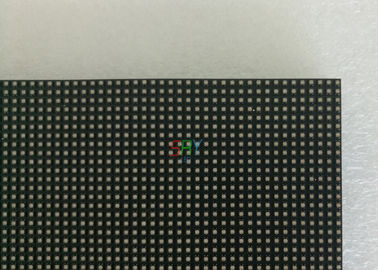

Product Images
