Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Resolution: | 27777dots/sqm |
|---|---|---|---|
| Led Chip: | SMD3528 | Viewing Distance: | 6-60m |
| Module Weight: | 0.2KG/pcs | Module Thickness: | 15mm |
Indoor Use P6 Led Display Module RGB SMD3528 3 IN 1 1/16 Scan Led Panel
Quick Detail:
1. JXI or Chipone Drive IC
2, 32 × 32 dots per LED module
3. SMD3528 LED type
4. 1/16 scan constant current
5. About 1.5 cm thick
Description:
1. Use friendly computer system
2. Approximate 3D image quality
3. Fast and easy to assemble and dismantle
4. Excellent white color balance
5. High grayscale with perfect visual performance
6. High reliability and long lifespan
Competitive Advantage:
1, Large viewing angle at 140 degree horizontal and vertical.
2, P6 indoor fixed led display uniform in brightness and color.
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade.
4, Indoor fixed led display contrast ratio up to 4000:1 to react real color of the content.
5, P6 indoor fixed led display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use.
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
576mm x 576mm |
|
Cabinet Weight |
8.5KG |
|
Brightness |
≥1100 cd/sqm |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
700W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
Supermarket, large-scale shopping malls, exclusive agency, chain shops,star-rated hotels, restaurants, travel agencies, movie theaters, clubs, bars, stages

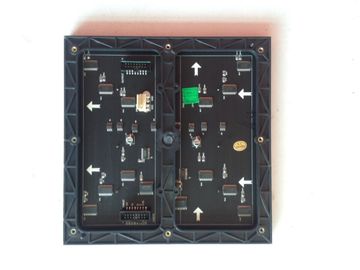

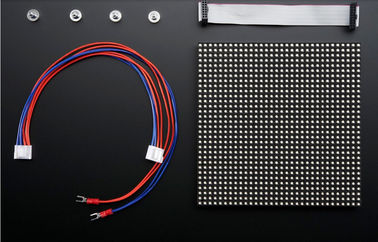

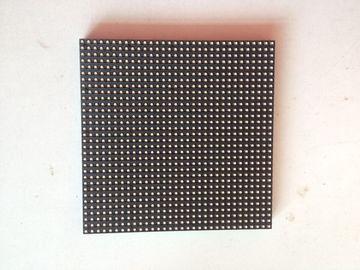

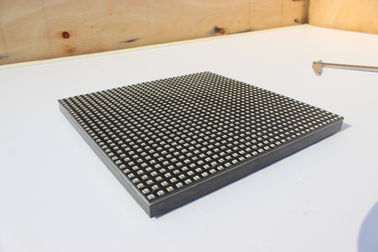

Product images:
