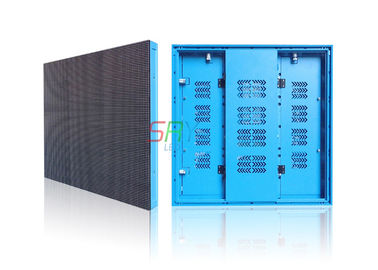

Energy Saving Rental LED Screen Cabinet 512mm x 512mm P4 Indoor LED Video Wall

Large Image : Energy Saving Rental LED Screen Cabinet 512mm x 512mm P4 Indoor LED Video Wall

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY-IF-P4

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 1,050 ~ 1,180 / Square Meter
Packaging Details:	Flight Case (0.520 x 0.62 x 0.72m，case size based on cabinet size. 6 cabinets in 1 flight case)
Delivery Time:	10-12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	4mm	LED Encapsulation:	SMD2121
Module Size:	256mm X 128mm	Drive Duty:	1/16scan Constant Current
Cabinet Weight:	7kg	Cabinet Color:	Blue
Cabinet Material:	Pulled Al	Certificate:	CE, LVD, RoHS
High Light:	LED Cabinet , LED display screen

Energy Saving Rental LED Screen Cabinet 512mm x 512mm P4 Indoor LED Video Wall

Decription:

P4 module has two sizes. One is 128mm x 128mm, another is 256mm x 128mm. For 512mm x 512mm pulled Al cabinet, we suggest 256mm x 128mm module. It saves half time to make wire connection. And reduce the splice between modules.

Features:

1. High Definition.

2. Screen working humidity: 10% ~ 95%.

3. Screen working temperature: -20ºc ~ +60ºc.

4. Energy saving design makes sure low power consumption.

Specification:

Pixel Pitch	4mm
Pixel Density	62,500dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD2121
Module Size	256mm x 128mm
Module Resolution	64dots x 32dots
Cabinet Size	512mm x 512mm
Cabinet Resolution	128dots x 128dots
Drive Duty	1/16 Constant Current
Brightness	≥1500nits
Viewing Distance	4m - 40m
Viewing Angle	H: 120°; V:120°
Refresh Rate	2000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	550W/sqm
Ave. Power Consumption	184W/sqm
Storage Temperature	-40℃~+80℃
Working Temperature	-20℃~+60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	7kg
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
