Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91mm | Color Configuration: | 1R1G1B 3in1 |
|---|---|---|---|
| LED Encapsulation: | SMD2121 | Cabinet Size: | 500mm X 500mm |
| Cabinet Weight: | 7kg | Drive Duty: | 1/16 Scan |
| Lifespan: | 100,000hrs | Warranty: | 2 Full Years |
| High Light: | LED screen Cabinet,LED Cabinet |
||
HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan
Decription:
Indoor HD 3.91mm Full Color 500mm x 500mm Portable LED Display Cabinet 1/16 Scan. Cabinet size can be designed as 500mm x 1,000mm
1. Anti-damage design:
Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.
2. Mixed-use available:
Two different cabinet sizes:500*500mm & 500*1000mm,they are compatible vertically with each other,which can mixed-use for one big screen..
3. Light weight and slim:
The thickness of each cabinet less than 80mm,only 11.5KG/cabinet.
4. Time-saving:
Each cabinet measures 500*1000mm ensuring assembly and disassembly twice faster.
5. Smart and Simple
No internal connection cables can deliver a much more stable performance.
Specification:
|
Pixel Pitch |
3.91mm |
|
Pixel Density |
64,410dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2121 |
|
Module Size |
250mm x 250mm |
| Cabinet Size | 500mm x 500mm |
| Cabinet Resolution | 128dots x 128dots |
| Cabinet Weight | 7kg |
|
Drive Duty |
1/16 Constant Current |
|
Brightness |
>1,800nits |
|
Viewing Distance |
4m - 40m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V ±10%, / 50HZ |
|
Max Power Consumption |
400W/sqm |
|
Ave. Power Consumption |
200W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

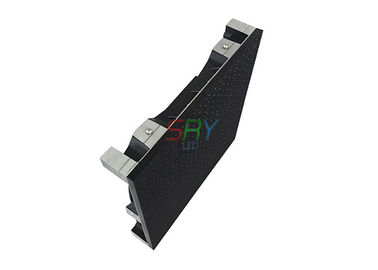

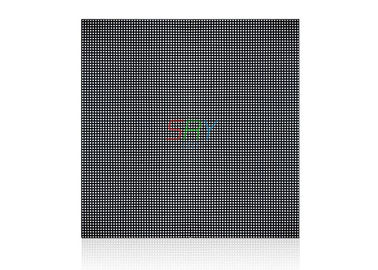

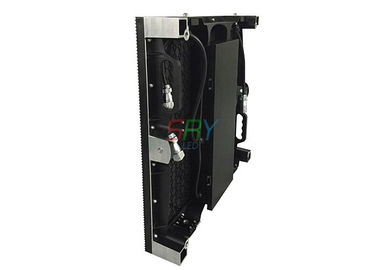

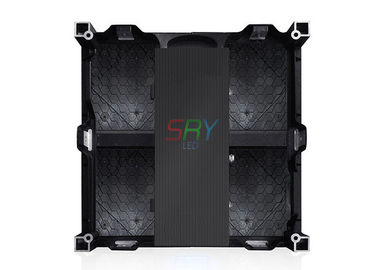

Pictures:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Plug and play, without tools to install / uninstall one cabinet in 6s.
3. One set cabinet structure is compatiable with various pixel pitches module.
4. Superb performance / price ratio solution for rental market.
5. 2 full years warranty. 7 days, 24hours on-line service.
