P6.67 Outdoor SMD3535 Full Color LED Display Cabinet IP65 Die casting Al

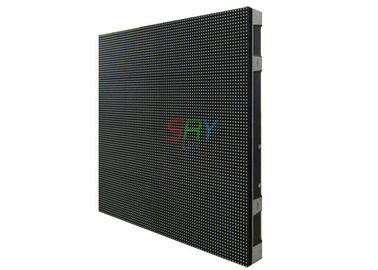

Large Image : P6.67 Outdoor SMD3535 Full Color LED Display Cabinet IP65 Die casting Al

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRYLED - OFC - P6.67

Payment & Shipping Terms:

Minimum Order Quantity:	1Square Meter
Price:	US$ 800 - 850 / Square Meter
Packaging Details:	Flight Case (flight case size depend on cabinet quantity)
Delivery Time:	10 - 12 Work Days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	6.67mm	Color Configuration:	1R1G1B 3in1
LED Encapsulation:	SMD3535	Cabinet Size:	640mm X 320mm
Cabinet Weight:	15kg	Cabinet Color:	Optional
Lifespan:	100,000hrs	Warranty:	2 Full Years
High Light:	LED screen Cabinet , LED Cabinet

P6.67 Outdoor SMD3535 Full Color LED Display Cabinet IP65 Die casting Al

Decription:

P6.67 Outdoor SMD3535 Full Color LED Display Cabinet, IP65 Die - casting Al Cabinet. The cabinet size is 640mm x 640mm.

Features:

1. Best viewing distance

7m - 70m

2. Best viewing angle

H: 120°, V: 120°

3. Max. power consumption

480W/sqm

4. Ave. power consumption

240W/sqm

Specification:

Pixel Pitch	6.67mm
Pixel Density	22,477dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3535
Module Size	320mm x 160mm
Module Resolution	48dots x 24dots
Cabinet Size	640mm x 640mm
Cabinet Resolution	96dots x 96dots
Cabinet Weight	15kg
Drive Duty	1/6 Constant Current
Brightness	>6,500nits
Viewing Distance	7m - 70m
Viewing Angle	H: 120°, V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	480W/sqm
Ave. Power Consumption	240W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Waterproof	IP65
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
