5mm Indoor Full Color Led Screen Cabinet 10kg / Pcs Pulled Aluminum

Large Image : 5mm Indoor Full Color Led Screen Cabinet 10kg / Pcs Pulled Aluminum

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRYLED - IFC - P5

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 850 - 950 / Square Meter
Packaging Details:	Flight Case (Flight case size depend on cabinet quantity)
Delivery Time:	10 - 12 Work Days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	Color Configuration:	1R1G1B 3in1
LED Encapsulation:	SMD3528	Module Size:	320mm X 160mm
Module Weight:	0.40kg	Cabinet Size:	640mm X 640mm
Cabinet Weight:	10kg	Warranty:	2 Full Years
High Light:	LED screen Cabinet , LED Cabinet

5mm Indoor Full Color Led Screen Cabinet 10kg / Pcs Pulled Aluminum

Decription:

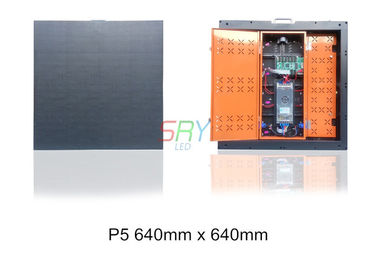

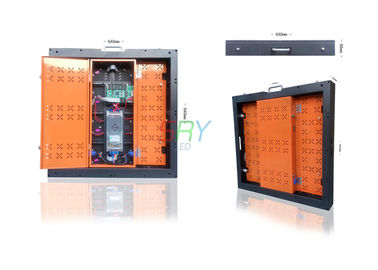

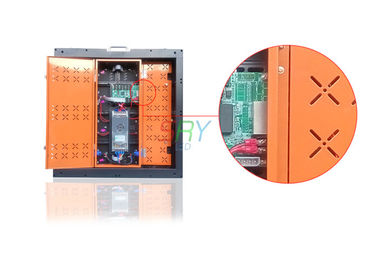

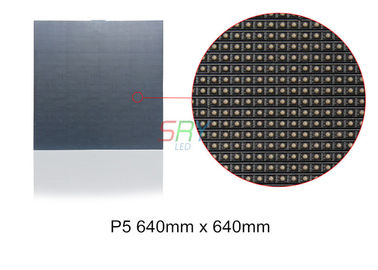

5mm Indoor Full Color 640mm x 640mm LED Display Cabinet, 10kg/pcs Pulled Aluminum Cabinet. Pulled aluminum cabinet design, makes it easy and fast to install.

Features:

1. Super light and super slim design

Weight: 10kg/cabinet

Thickness: 70mm

2. Seamless splicing design

Splice: <0.3mm

3. Energy saving design

Max. power consumption: 800W/sqm

Ave. power consumption: 270W/sqm

4. Great heat disspation design

Specification:

Pixel Pitch	5mm
Pixel Density	40,000dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3528
Module Size	320mm x 160mm
Module Resolution	64dots x 32dots
Cabinet Size	640mm x 640mm
Cabinet Resolution	128dots x 128dots
Drive Duty	1/16 Constant Current
Brightness	>1,800nits
Viewing Distance	5m - 50m
Viewing Angle	H: 120°, V:120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	800W/sqm
Ave. Power Consumption	270W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	10kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
