SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display

Large Image : SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRYLED - OFS - P8

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 850 - 950 / Square Meter
Packaging Details:	Wooden Case (Wooden case size depend on cabinet quantity)
Delivery Time:	10 - 12 Work Days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	8mm	Color Configuration:	1R1G1B 3in1
LED Encapsulation:	SMD3535	Module Size:	256mm X 128mm
Module Weight:	0.35kg	Cabinet Size:	1280mm X 640mm
Cabinet Weight:	35kg	Warranty:	2 Full Years
High Light:	outdoor advertising LED display , outside advertising boards

SMD3535 6500 Nits Advertising Led Screen 8mm Outdoor Led Video Display

Decription:

6,500nits Outdoor High Brightness LED Display, 8mm Outdoor Full Color LED Display. Using outdoor high brightness SMD3535 LED lamp to makes sure 6,500nits brightness.

Features:

1. Super light and super slim design

Weight: 35kg/cabinet

Thickness: 100mm

2. Seamless splicing design

Splice: <0.3mm

3. Energy saving design

Max. power consumption: 760W/sqm

Ave. power consumption: 253W/sqm

4. Great heat disspation design

Specification:

Pixel Pitch	8mm
Pixel Density	15,625dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1

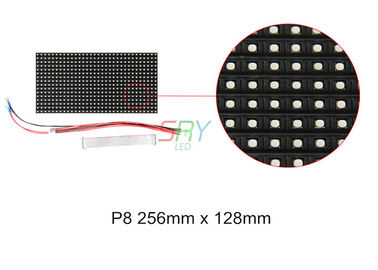

LED Encapsulation	SMD3535

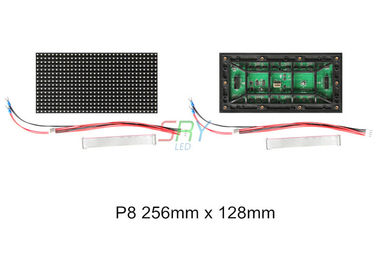

Module Size	256mm x 128mm
Module Resolution	32dots x 16dots
Cabinet Size	1,280mm x 640mm
Cabinet Resolution	160dots x 80dots
Drive Duty	1/4 Constant Current
Brightness	>6,500nits
Viewing Distance	8m - 80m
Viewing Angle	H: 120°, V:120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	760W/sqm
Ave. Power Consumption	253W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Waterproof	IP65
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	35kg
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
