Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Led Type: | SMD3535 |
|---|---|---|---|
| Cabinet Size: | 1280mm X 1920mm | Maintainance: | Front Open |
| Waterproof: | IP65 | Color: | RGB Full Color |
| High Light: | outdoor advertising LED display,outside advertising boards |
||
Easy Maintain IP65 Outdoor Full Color LED Display Cabinet P 10 led wall display
Description
1. Front open led screen, it also called front service. Led screen have front access and rear access two types. Mostly we used rear access cabinets, while if led screen height is not very high(usually less than 2 meters), you can choose front access led cabinet.
2. It is very easy to install, only need a angle iron and some screws to fix on wall.
3. When led modules, cables or power supply dont work well, we can open the led cabinet from front side to replace or repair broken parts.
Features
1) High brightness and can be adjusted to meet the customers' requirement based on the change of the environment.
2) Best uniformity, commendably solve the problem of the mosaic, with the excellent consistency of luminescence.
3) Clear, delicate and vivid display effect of the videos, images, texts etc.
4) Big viewing angle to 120 degree at horizontal line, 120 degree at vertical line, you can see at everry angle within this range, no picture change ,no color excursion.
5) Can relace each modules, so the cost of maintaining is lower.
Warranty
SRYLED offers two years warranty. Repairing and replacement during the guaranteed period will be free, but you should bear the freight cost from your place to our factory. However, we can not guarantee compensation for damage, and repairing charge by your own manual broken.
Specification
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B |
|
Module Size |
320mm x 160mm |
|
Brightness |
>6500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control PC |
With DVI Graphic card |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |

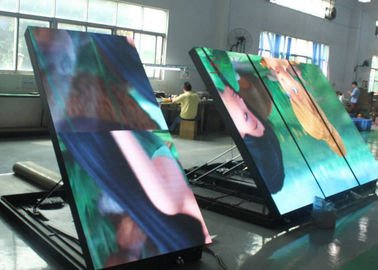

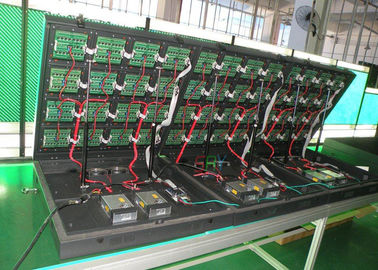

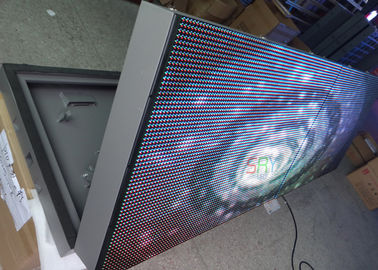

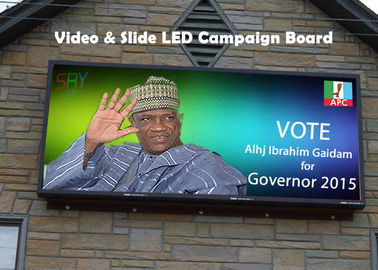

Product Images
